1777639 | Phoenix Contact
PCB terminal, 11 pole, pitch 6.35 mm, AWG 24-10, 41 A, screw connection, green, 1777639
Unit Price (€ / pc.)
7.1400 € *
Available: 0 pcs.
Leadtime: 6 Weeks **

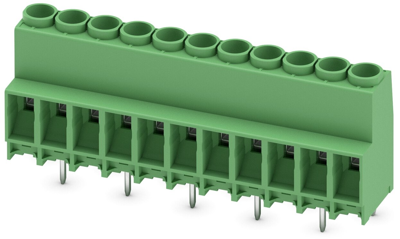

PCB terminal, 1777639, Phoenix Contact

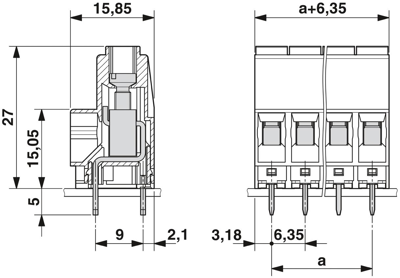

PCB terminal block, nominal current: 41 A, rated voltage (III/2): 1000 V, nominal cross section: 4 mm², number of potentials: 11, number of rows: 1, number of positions per row: 11, pitch: 6.35 mm, connection method: screw connection with tension sleeve, screw head form: L slotted, conductor/PCB connection direction: 0 °, color: green, pin layout: Zigzag pinning W, solder pin: 5 mm, number of solder pins per potential: 1.
Features
- Low temperature rise, thanks to maximum contact force
- Allows connection of two conductors
Technical specifications
| Connection | screw connection | |
| AWG cross-section | AWG 24-10 | |
| Width | 69.85 mm | |
| Colour | green | |
| Height | 27 mm | |
| Cable cross-section | 0.2-6.0 mm² | |
| Rated voltage | 1 kV | |
| Rated current | 41 A | |
| Pin number | 11 pole | |
| Grid | 6.35 mm |
Download
Logistics
| Country of origin | PL |
| Customs tariff number | 85369010 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
