1789210 | Phoenix Contact

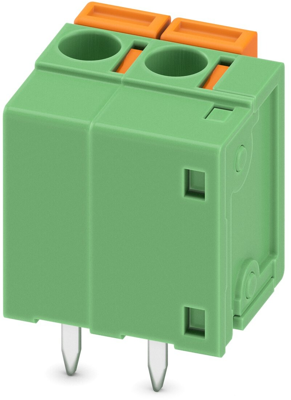

PCB terminal, 2 pole, pitch 5.08 mm, AWG 24-16, 15 A, spring-clamp connection, green, 1789210
Unit Price (€ / pc.)
1.4042 € *
Available: 0 pcs.
Available in 10 days: 126 pcs.
Leadtime: 1 Week **
Total Price:
1.40 € *
Price list
Quantity
Price per unit*
1 pcs.
1.4042 €
10 pcs.
1.2852 €
50 pcs.
1.1781 €
100 pcs.
1.0591 €
*incl. VAT plus shipping costs
**Subject to prior sale
PCB terminal, 1789210, Phoenix Contact
PCB terminal block, nominal current: 15 A, rated voltage (III/2): 400 V, nominal cross section: 1.5 mm², number of potentials: 2, number of rows: 1, number of positions per row: 2, pitch: 5.08 mm, connection method: push-in spring connection, conductor/PCB connection direction: 90 °, color: green, pin layout: linear pinning, solder pin: 3.4 mm, number of solder pins per potential: 2.
Features
- Time saving push-in connection, tools not required
- Defined contact force ensures that contact remains stable over the long term
- Intuitive use through colour coded actuation lever
- Two solder pins reduce the mechanical strain on the soldering spots
- The latching on the side enables various numbers of positions to be combined
Technical specifications
| Anschluss | Federklemmanschluss | |
| AWG-Leiterquerschnitt | AWG 24-16 | |
| Breite | 12.66 mm | |
| Farbe | grün | |
| Höhe | 17 mm | |
| Leiterquerschnitt | 0,2-1,5 mm² | |
| Nennspannung | 320 V | |
| Nennstrom | 15 A | |
| Polzahl | 2-polig | |
| Rastermaß | 5.08 mm |
Download
Logistics
| Ursprungsland | DE |
| Zolltarifnummer | 85369010 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
