1789401 | Phoenix Contact
PCB terminal, 10 pole, pitch 2.54 mm, AWG 26-20, 6 A, spring-clamp connection, green, 1789401
Unit Price (€ / pc.)
6.5212 € *
Available: 10 pcs.
Available in 10 days: 9 pcs.
Leadtime: 2 Weeks **
Total Price:
6.52 € *
Price list
Quantity
Price per unit*
1 pcs.
6.5212 €
10 pcs.
5.9857 €
50 pcs.
5.4621 €
100 pcs.
4.9147 €
*incl. VAT plus shipping costs
**Subject to prior sale

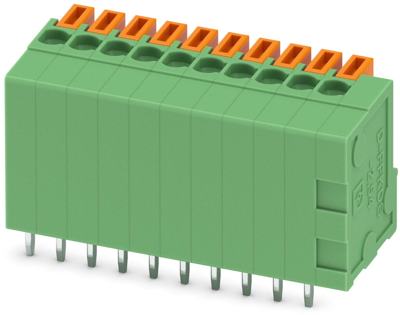

PCB terminal, 1789401, Phoenix Contact
PCB terminal block, nominal current: 6 A, rated voltage (III/2): 160 V, nominal cross section: 0.5 mm², number of potentials: 10, number of rows: 1, number of positions per row: 10, pitch: 2.54 mm, connection method: push-in spring connection, conductor/PCB connection direction: 0 °, color: green, pin layout: linear double pinning, solder pin: 3.6 mm, number of solder pins per potential: 2.
Features
- Time saving push-in connection, tools not required
- Defined contact force ensures that contact remains stable over the long term
- Intuitive use through colour coded actuation lever
- Two solder pins reduce the mechanical strain on the soldering spots
- The latching on the side enables various numbers of positions to be combined
Technical specifications
| Connection | Federklemmanschluss | |
| AWG cross-section | AWG 26-20 | |
| Width | 27.9 mm | |
| Colour | grün | |
| Height | 17 mm | |
| Cable cross-section | 0,14-0,5 mm² | |
| Rated voltage | 160 V | |
| Rated current | 6 A | |
| Pin number | 10-polig | |
| Grid | 2.54 mm |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85369010 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
