1789472 | Phoenix Contact

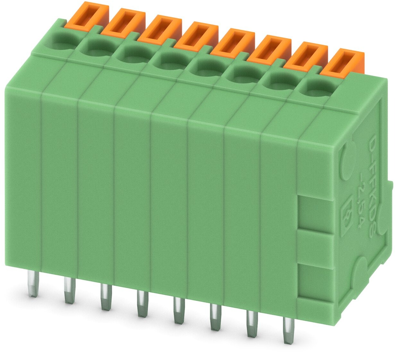

PCB terminal, 8 pole, pitch 2.54 mm, AWG 26-20, 6 A, spring-clamp connection, green, 1789472
Unit Price (€ / pc.)
5.4383 € *
Available: 0 pcs.
Leadtime: 4 Weeks **
Total Price:
5.44 € *
Price list
Quantity
Price per unit*
1 pcs.
5.4383 €
10 pcs.
4.9980 €
50 pcs.
4.5458 €
100 pcs.
4.0936 €
*incl. VAT plus shipping costs
**Subject to prior sale
PCB terminal, 1789472, Phoenix Contact

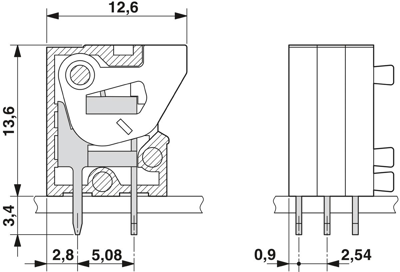

PCB terminal block, nominal current: 6 A, rated voltage (III/2): 160 V, nominal cross section: 0.5 mm², number of potentials: 8, number of rows: 1, number of positions per row: 8, pitch: 2.54 mm, connection method: push-in spring connection, conductor/PCB connection direction: 0 °, color: green, pin layout: linear double pinning, solder pin: 3.6 mm, number of solder pins per potential: 2.
Features
- Time saving push-in connection, tools not required
- Defined contact force ensures that contact remains stable over the long term
- Intuitive use through colour coded actuation lever
- Two solder pins reduce the mechanical strain on the soldering spots
- The latching on the side enables various numbers of positions to be combined
Technical specifications
| Anschluss | Federklemmanschluss | |
| AWG-Leiterquerschnitt | AWG 26-20 | |
| Breite | 22.82 mm | |
| Farbe | grün | |
| Höhe | 17 mm | |
| Kontaktabstand | RM 2,54/5,08 | |
| Leiterquerschnitt | 0,14-0,5 mm² | |
| Nennspannung | 160 V | |
| Nennstrom | 6 A | |
| Polzahl | 8-polig | |
| Rastermaß | 2.54 mm |
Download
Logistics
| Ursprungsland | DE |
| Zolltarifnummer | 85369010 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
