1790487 | Phoenix Contact

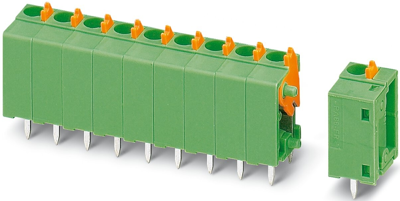

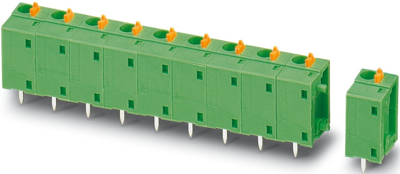

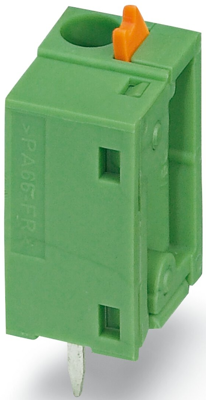

PCB terminal, 1 pole, pitch 7.62 mm, AWG 24-16, 17.5 A, spring-clamp connection, green, 1790487
Unit Price (€ / pc.)
1.0472 € *
Available: 0 pcs.
Available in 10 days: 6,196 pcs.
Leadtime: 1 Week **
Total Price:
1.05 € *
Price list
Quantity
Price per unit*
1 pcs.
1.0472 €
10 pcs.
0.9520 €
100 pcs.
0.8211 €
*incl. VAT plus shipping costs
**Subject to prior sale
PCB terminal, 1790487, Phoenix Contact
PCB terminal block, nominal current: 17.5 A, rated voltage (III/2): 630 V, nominal cross section: 1.5 mm², number of potentials: 1, number of rows: 1, number of positions per row: 1, pitch: 7.62 mm, connection method: push-in spring connection, conductor/PCB connection direction: 90 °, color: green, pin layout: linear double pinning, solder pin: 3.4 mm, number of solder pins per potential: 2.
Features
- Time saving push-in connection, tools not required
- Defined contact force ensures that contact remains stable over the long term
- Intuitive use through colour coded actuation lever
- Two solder pins reduce the mechanical strain on the soldering spots
- The latching on the side enables various numbers of positions to be combined
Technical specifications
| Connection | Federklemmanschluss | |
| AWG cross-section | AWG 24-16 | |
| Width | 7.62 mm | |
| Colour | grün | |
| Height | 19.4 mm | |
| Cable cross-section | 0,2-1,5 mm² | |
| Rated voltage | 630 V | |
| Rated current | 17.5 A | |
| Pin number | 1-polig | |
| Grid | 7.62 mm |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85369010 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
