1824080 | Phoenix Contact
PCB terminal, 2 pole, pitch 3.5 mm, AWG 24-16, 13.5 A, spring-clamp connection, black, 1824080
Unit Price (€ / pc.)
1.4042 € *
Available: 120 pcs.
Available in 10 days: 2,600 pcs.
Leadtime: 1 Week **
PCB terminal, 1824080, Phoenix Contact
PCB terminal block, nominal current: 13.5 A, rated voltage (III/2): 160 V, nominal cross section: 1.5 mm², number of potentials: 2, number of rows: 1, number of positions per row: 2, pitch: 3.5 mm, connection method: push-in spring connection, conductor/PCB connection direction: 90 °, color: black, pin layout: linear pad geometry, number of solder pins per potential: 2.
Features
- Time saving push-in connection, tools not required
- Defined contact force ensures that contact remains stable over the long term
- Intuitive use through colour coded actuation lever
- Quick and convenient testing using integrated test option
- Two solder pins reduce the mechanical strain on the soldering spots

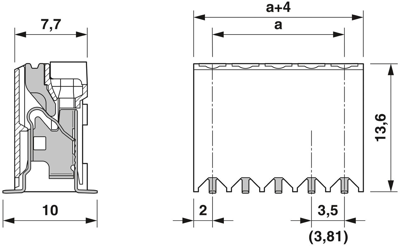

Technical specifications
| Anschluss | Federklemmanschluss | |
| AWG-Leiterquerschnitt | AWG 24-16 | |
| Breite | 7.5 mm | |
| Farbe | schwarz | |
| Höhe | 13.6 mm | |
| Kontaktabstand | RM 3,5/10 | |
| Leiterquerschnitt | 0,2-1,5 mm² | |
| Nennspannung | 160 V | |
| Nennstrom | 13.5 A | |
| Polzahl | 2-polig | |
| Rastermaß | 3.5 mm |
Download
Logistics
| Ursprungsland | PL |
| Zolltarifnummer | 85369010 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
