1841490 | Phoenix Contact

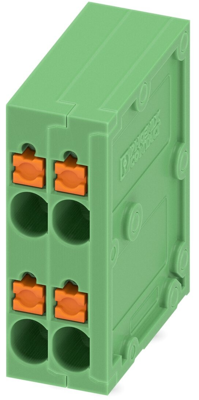

PCB terminal, 4 pole, pitch 3.5 mm, AWG 26-16, 10 A, spring-clamp connection, green, 1841490
Unit Price (€ / pc.)
2.2967 € *
Available: 0 pcs.
Available in 10 days: 4,093 pcs.
Leadtime: 1 Week **
Total Price:
2.30 € *
Price list
Quantity
Price per unit*
1 pcs.
2.2967 €
10 pcs.
2.1063 €
50 pcs.
1.9159 €
100 pcs.
1.7255 €
*incl. VAT plus shipping costs
**Subject to prior sale
PCB terminal, 1841490, Phoenix Contact
PCB terminal block, nominal current: 10 A, rated voltage (III/2): 200 V, nominal cross section: 1.5 mm², number of potentials: 4, number of rows: 2, number of positions per row: 2, pitch: 3.5 mm, connection method: push-in spring connection, conductor/PCB connection direction: 0 °, color: green, pin layout: linear pinning, solder pin: 3.5 mm, number of solder pins per potential: 1.
Features
- Time saving push-in connection, tools not required
- Defined contact force ensures that contact remains stable over the long term
- Intuitive use through colour coded actuation lever
- Conductor connection on several levels enables higher contact density
- Quick and convenient testing using integrated test option

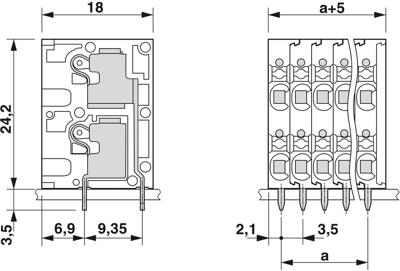

Technical specifications
| Connection | spring-clamp connection | |
| AWG cross-section | AWG 26-16 | |
| Width | 12 mm | |
| Colour | green | |
| Height | 24.2 mm | |
| Contact distance | RM 3.5/9.35 | |
| Cable cross-section | 0.14-1.5 mm² | |
| Rated voltage | 200 V | |
| Rated current | 10 A | |
| Pin number | 4 pole | |
| Grid | 3.5 mm |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 85369010 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
