1841856 | Phoenix Contact

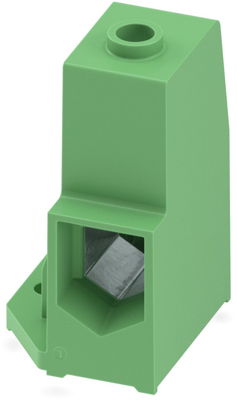

PCB terminal, 1 pole, pitch 20 mm, AWG 6-3, 232 A, screw connection, green, 1841856
Unit Price (€ / pc.)
16.1364 € *
Available: 0 pcs.
Available in 10 days: 4 pcs.
Leadtime: 1 Week **
Total Price:
16.14 € *
Price list
Quantity
Price per unit*
1 pcs.
16.1364 €
10 pcs.
14.8393 €
50 pcs.
13.5065 €
100 pcs.
12.1499 €
*incl. VAT plus shipping costs
**Subject to prior sale
PCB terminal, 1841856, Phoenix Contact
PCB terminal block, nominal current: 232 A, rated voltage (III/2): 1000 V, nominal cross section: 95 mm², number of potentials: 1, number of rows: 1, number of positions per row: 1, pitch: 20 mm, connection method: screw connection with tension sleeve, screw head form: T40 Torx, conductor/PCB connection direction: 0 °, color: green, pin layout: linear three-way pinning, solder pin: 4 mm, number of solder pins per potential: 6.
Features
- Low temperature rise, thanks to maximum contact force
- Allows connection of two conductors
- Quick and convenient testing using integrated test option
- Integrated protective guide prevents incorrect insertion of the conductor underneath the tension sleeve
- Mounting flanges reduce the mechanical strain on the soldering spots
Technical specifications
| Anschluss | Schraubanschluss | |
| AWG-Leiterquerschnitt | AWG 6-3 | |
| Breite | 52 mm | |
| Farbe | grün | |
| Höhe | 73 mm | |
| Leiterquerschnitt | 10-16 mm² | |
| Nennspannung | 1 kV | |
| Nennstrom | 232 A | |
| Polzahl | 1-polig | |
| Rastermaß | 20 mm |
Download
Logistics
| Ursprungsland | DE |
| Zolltarifnummer | 85369010 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
