1856207 | Phoenix Contact
PCB terminal, 5 pole, pitch 17.5 mm, AWG 16-2, 192 A, screw connection, green, 1856207
Unit Price (€ / pc.)
19.8016 € *
Available: 0 pcs.
Available in 10 days: 9 pcs.
Leadtime: 1 Week **

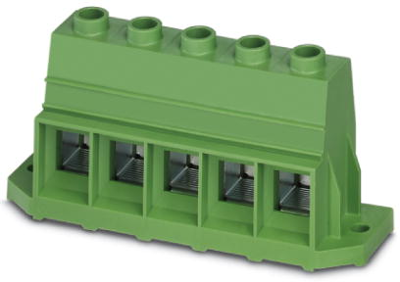

PCB terminal, 1856207, Phoenix Contact

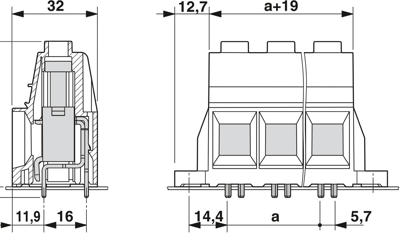

PCB terminal block, nominal current: 192 A, rated voltage (III/2): 1000 V, nominal cross section: 70 mm², number of potentials: 5, number of rows: 1, number of positions per row: 5, pitch: 17.5 mm, connection method: screw connection with tension sleeve, conductor/PCB connection direction: 0 °, color: green, pin layout: linear 2x2 pinning, solder pin: 4 mm, number of solder pins per potential: 4.
Features
- Low temperature rise, thanks to maximum contact force
- Allows connection of two conductors
- Quick and convenient testing using integrated test option
- Integrated protective guide prevents incorrect insertion of the conductor underneath the tension sleeve
Technical specifications
| Anschluss | Schraubanschluss | |
| AWG-Leiterquerschnitt | AWG 16-2 | |
| Breite | 115.2 mm | |
| Farbe | grün | |
| Höhe | 59 mm | |
| Kontaktabstand | RM 17,5/16 | |
| Leiterquerschnitt | 1,5-70 mm² | |
| Nennspannung | 1 kV | |
| Nennstrom | 192 A | |
| Polzahl | 5-polig | |
| Rastermaß | 17.5 mm |
Download
Logistics
| Ursprungsland | CN |
| Zolltarifnummer | 85369010 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
