1862026 | Phoenix Contact
PCB terminal, 11 pole, pitch 3.5 mm, AWG 24-16, 16 A, spring-clamp connection, green, 1862026
Unit Price (€ / pc.)
3.1773 € *
Available: 0 pcs.
Leadtime: 4 Weeks **

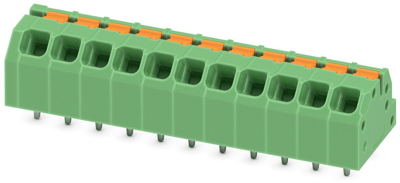

PCB terminal, 1862026, Phoenix Contact

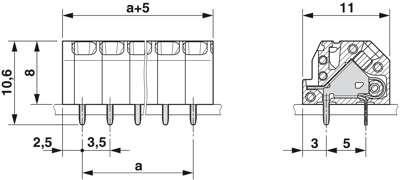

PCB terminal block, nominal current: 16 A, rated voltage (III/2): 160 V, nominal cross section: 1.5 mm², number of potentials: 11, number of rows: 1, number of positions per row: 11, pitch: 3.5 mm, connection method: push-in spring connection, conductor/PCB connection direction: 45 °, color: green, pin layout: linear double pinning, solder pin: 2.6 mm, number of solder pins per potential: 2.
Features
- Time saving push-in connection, tools not required
- Defined contact force ensures that contact remains stable over the long term
- Intuitive use through colour coded actuation lever
- Quick and convenient testing using integrated test option
Technical specifications
| Anschluss | Federklemmanschluss | |
| AWG-Leiterquerschnitt | AWG 24-16 | |
| Breite | 40 mm | |
| Farbe | grün | |
| Höhe | 10.6 mm | |
| Kontaktabstand | RM 3,5/5 | |
| Leiterquerschnitt | 0,2-1,5 mm² | |
| Nennspannung | 160 V | |
| Nennstrom | 16 A | |
| Polzahl | 11-polig | |
| Rastermaß | 3.5 mm |
Download
Logistics
| Ursprungsland | PL |
| Zolltarifnummer | 85369010 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
