1864312 | Phoenix Contact

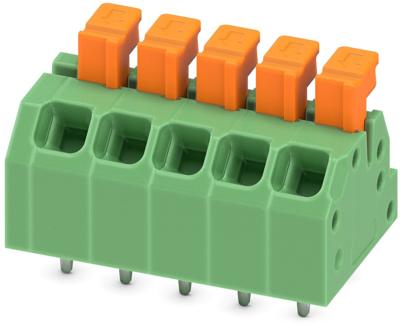

PCB terminal, 5 pole, pitch 3.5 mm, AWG 24-18, 13.5 A, spring-clamp connection, green, 1864312
Unit Price (€ / pc.)
2.4752 € *
Available: 0 pcs.
Leadtime: 5 Weeks **
Total Price:
2.48 € *
Price list
Quantity
Price per unit*
1 pcs.
2.4752 €
10 pcs.
2.2253 €
100 pcs.
1.8802 €
*incl. VAT plus shipping costs
**Subject to prior sale
PCB terminal, 1864312, Phoenix Contact
PCB terminal block, nominal current: 13.5 A, rated voltage (III/2): 160 V, nominal cross section: 1 mm², number of potentials: 5, number of rows: 1, number of positions per row: 5, pitch: 3.5 mm, connection method: push-in spring connection, conductor/PCB connection direction: 45 °, color: green, pin layout: linear double pinning, solder pin: 2.6 mm, number of solder pins per potential: 2.
Features
- Time saving push-in connection, tools not required
- Defined contact force ensures that contact remains stable over the long term
- Finger-operated release button for very convenient operation
- Quick and convenient testing using integrated test option
Technical specifications
| Connection | spring-clamp connection | |
| AWG cross-section | AWG 24-18 | |
| Width | 19 mm | |
| Colour | green | |
| Height | 13.5 mm | |
| Contact distance | RM 3.5/5 | |
| Cable cross-section | 0.2-0.75 mm² | |
| Rated voltage | 160 V | |
| Rated current | 13.5 A | |
| Pin number | 5 pole | |
| Grid | 3.5 mm |
Download
Logistics
| Country of origin | PL |
| Customs tariff number | 85369010 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
