1868212 | Phoenix Contact
PCB terminal, 11 pole, pitch 3.5 mm, AWG 26-16, 12 A, screw connection, green, 1868212
Unit Price (€ / pc.)
4.3435 € *
Available: 0 pcs.
Available in 10 days: 1,154 pcs.
Leadtime: 1 Week **
PCB terminal, 1868212, Phoenix Contact
PCB terminal block, nominal current: 12 A, rated voltage (III/2): 160 V, nominal cross section: 1.5 mm², number of potentials: 11, number of rows: 1, number of positions per row: 11, pitch: 3.5 mm, connection method: screw connection with tension sleeve, screw head form: L slotted, conductor/PCB connection direction: 90 °, color: green, pin layout: linear pinning, solder pin: 3.5 mm, number of solder pins per potential: 1.
Features
- Low temperature rise, thanks to maximum contact force
- Allows connection of two conductors
- Stand-offs enable the PCB to be cleaned or sealed

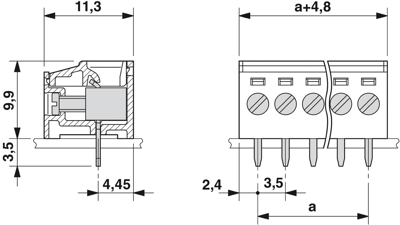

Technical specifications
| Connection | screw connection | |
| AWG cross-section | AWG 26-16 | |
| Width | 39.8 mm | |
| Colour | green | |
| Height | 13.9 mm | |
| Cable cross-section | 0.14-1.5 mm² | |
| Rated voltage | 160 V | |
| Rated current | 12 A | |
| Pin number | 11 pole | |
| Grid | 3.5 mm |
Download
Logistics
| Country of origin | PL |
| Customs tariff number | 85369010 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
