1868746 | Phoenix Contact
PCB terminal, 3 pole, pitch 5.08 mm, AWG 26-14, 17.5 A, screw connection, green, 1868746
Unit Price (€ / pc.)
3.0583 € *
Available: 0 pcs.
Leadtime: 6 Weeks **
Total Price:
3.06 € *
Price list
Quantity
Price per unit*
1 pcs.
3.0583 €
10 pcs.
2.8084 €
50 pcs.
2.5585 €
100 pcs.
2.2967 €
*incl. VAT plus shipping costs
**Subject to prior sale
PCB terminal, 1868746, Phoenix Contact

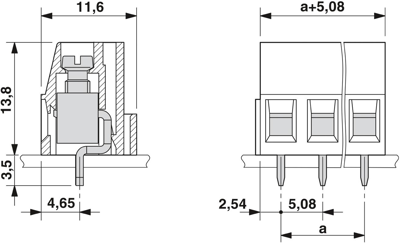

PCB terminal block, nominal current: 17.5 A, rated voltage (III/2): 400 V, nominal cross section: 1.5 mm², number of potentials: 3, number of rows: 1, number of positions per row: 3, pitch: 5.08 mm, connection method: screw connection with tension sleeve, screw head form: L slotted, conductor/PCB connection direction: 0 °, color: green, pin layout: linear pinning, solder pin: 3.5 mm, number of solder pins per potential: 1.
Features
- Low temperature rise, thanks to maximum contact force
- Allows connection of two conductors
- Internal bridging for easily looping through potentials
- The latching on the side enables various numbers of positions to be combined
Technical specifications
| Connection | screw connection | |
| AWG cross-section | AWG 26-14 | |
| Width | 15.24 mm | |
| Colour | green | |
| Height | 17.3 mm | |
| Cable cross-section | 0.14-2.5 mm² | |
| Rated voltage | 400 V | |
| Rated current | 17.5 A | |
| Pin number | 3 pole | |
| Grid | 5.08 mm |
Download
Logistics
| Country of origin | PL |
| Customs tariff number | 85369010 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
