1869091 | Phoenix Contact

PCB terminal, 5 pole, pitch 5 mm, AWG 26-16, 13.5 A, screw connection, green, 1869091

Order No.: 63P8912
EAN: 4017918149062
MPN:
1869091
SMKDSN 1,5/ 5
Series: SMKDS

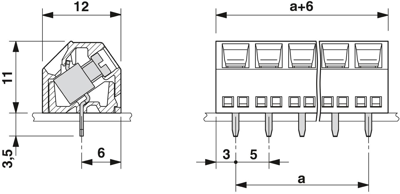

1869091 Phoenix Contact PCB Terminal Blocks Image 1

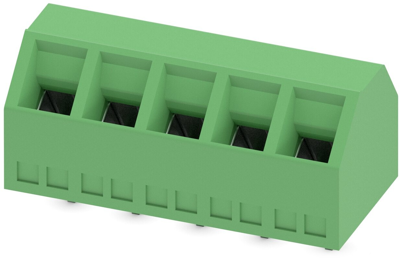

1869091 Phoenix Contact PCB Terminal Blocks Image 2
Image may differ
Unit Price (€ / pc.)
2.2967 € *
Available: 0 pcs.
Available in 10 days: 2,050 pcs.
Leadtime: 1 Week **
Total Price:
2.30 € *
Price list
Quantity
Price per unit*
1 pcs.
2.2967 €
10 pcs.
2.1182 €
50 pcs.
1.9278 €
100 pcs.
1.7374 €
*incl. VAT plus shipping costs
**Subject to prior sale

PCB terminal, 1869091, Phoenix Contact

PCB terminal block, nominal current: 13.5 A, rated voltage (III/2): 400 V, nominal cross section: 1.5 mm², number of potentials: 5, number of rows: 1, number of positions per row: 5, pitch: 5 mm, connection method: screw connection with tension sleeve, screw head form: L slotted, conductor/PCB connection direction: 45 °, color: green, pin layout: linear pinning, solder pin: 3.5 mm, number of solder pins per potential: 1.

Features

  • Low temperature rise, thanks to maximum contact force
  • Allows connection of two conductors
  • Angled connection enables multi-row arrangement on the PCB
  • Extremely small design for the respective conductor cross section
Technical specifications
Anschluss Schraubanschluss
AWG-Leiterquerschnitt AWG 26-16
Breite 26 mm
Farbe grün
Höhe 14.5 mm
Leiterquerschnitt 0,14-1,5 mm²
Nennspannung 400 V
Nennstrom 13.5 A
Polzahl 5-polig
Rastermaß 5 mm
Logistics
Ursprungsland DE
Zolltarifnummer 85369010
Compliance
RoHS konform Yes
Stand der RoHS-Richtlinie 3/31/15
SVHC frei No
Substanz Beschreibung Blei
