1869240 | Phoenix Contact

PCB terminal, 5 pole, pitch 5.08 mm, AWG 26-16, 13.5 A, screw connection, green, 1869240

Order No.: 63P8913
EAN: 4017918149215
MPN:
1869240
SMKDSN 1,5/ 5-5,08
Series: SMKDS
Phoenix Contact

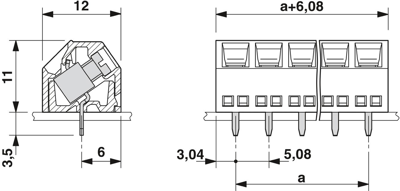

1869240 Phoenix Contact PCB Terminal Blocks Image 1

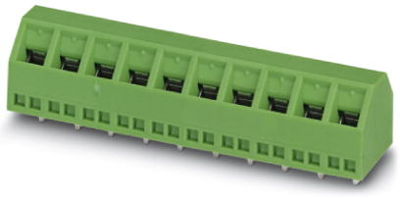

1869240 Phoenix Contact PCB Terminal Blocks Image 2
Image may differ
Unit Price (€ / pc.)
2.2967 € *
Available: 250 pcs.
Available in 10 days: 13,800 pcs.
Leadtime: 2 Weeks **
Total Price:
2.30 € *
Price list
Quantity
Price per unit*
1 pcs.
2.2967 €
10 pcs.
2.1182 €
50 pcs.
1.9278 €
100 pcs.
1.7374 €
*incl. VAT plus shipping costs
**Subject to prior sale

PCB terminal, 1869240, Phoenix Contact

PCB terminal block, nominal current: 13.5 A, rated voltage (III/2): 400 V, nominal cross section: 1.5 mm², number of potentials: 5, number of rows: 1, number of positions per row: 5, pitch: 5,08 mm, connection method: screw connection with tension sleeve, screw head form: L slotted, conductor/PCB connection direction: 45 °, color: green, pin layout: linear pinning, solder pin: 3.5 mm, number of solder pins per potential: 1.

Features

  • Low temperature rise, thanks to maximum contact force
  • Allows connection of two conductors
  • Angled connection enables multi-row arrangement on the PCB
  • Extremely small design for the respective conductor cross section
Technical specifications
Connection screw connection
AWG cross-section AWG 26-16
Width 26.4 mm
Colour green
Height 14.5 mm
Cable cross-section 0.14-1.5 mm²
Rated voltage 400 V
Rated current 13.5 A
Pin number 5 pole
Grid 5.08 mm
Logistics
Country of origin DE
Customs tariff number 85369010
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free No
Substance description Lead
