1870255 | Phoenix Contact
PCB terminal, 2 pole, pitch 5.08 mm, AWG 24-12, 22 A, screw connection, green, 1870255
Unit Price (€ / pc.)
3.8318 € *
Available: 0 pcs.
Leadtime: 7 Weeks **

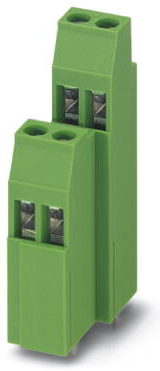

PCB terminal, 1870255, Phoenix Contact

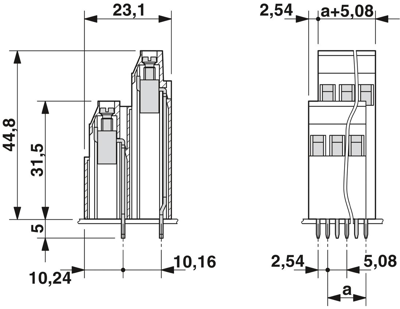

PCB terminal block, nominal current: 20 A, nominal cross section: 2.5 mm², number of potentials: 4, number of rows: 2, number of positions per row: 2, pitch: 5.08 mm, connection method: screw connection with tension sleeve, screw head form: L slotted, conductor/PCB connection direction: 0 °, color: green, pin layout: linear pinning, solder pin: 5 mm, number of solder pins per potential: 1.
Features
- Low temperature rise, thanks to maximum contact force
- Conductor connection on several levels enables higher contact density
- Integrated protective guide prevents incorrect insertion of the conductor underneath the tension sleeve

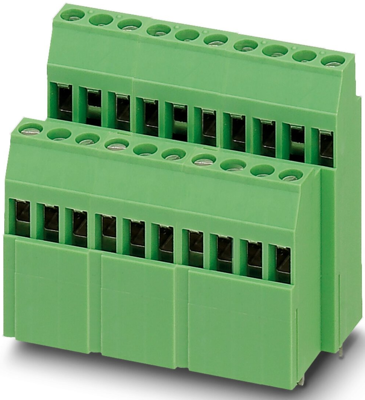

- The latching on the side enables various numbers of positions to be combined
Technical specifications
| Connection | screw connection | |
| AWG cross-section | AWG 24-12 | |
| Width | 10.16 mm | |
| Colour | green | |
| Height | 49.8 mm | |
| Cable cross-section | 0.2-4.0 mm² | |
| Rated voltage | 320 V | |
| Rated current | 22 A | |
| Pin number | 2 pole | |
| Grid | 5.08 mm |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85369010 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
