1877588 | Phoenix Contact
PCB terminal, 12 pole, pitch 5.08 mm, AWG 26-16, 12 A, screw connection, green, 1877588
Unit Price (€ / pc.)
7.0448 € *
Available: 0 pcs.
Leadtime: 4 Weeks **

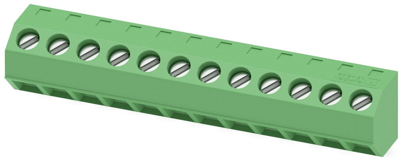

PCB terminal, 1877588, Phoenix Contact
PCB terminal block, nominal current: 12 A, rated voltage (III/2): 400 V, nominal cross section: 1.5 mm², number of potentials: 12, number of rows: 1, number of positions per row: 12, pitch: 5.08 mm, connection method: screw connection with tension sleeve, screw head form: L slotted, conductor/PCB connection direction: 325 °, color: green, pin layout: linear pinning, solder pin: 3.5 mm, number of solder pins per potential: 1.
Features
- Low temperature rise, thanks to maximum contact force
- Allows connection of two conductors
- Extremely small design for the respective conductor cross section
Technical specifications
| Connection | Schraubanschluss | |
| AWG cross-section | AWG 26-16 | |
| Width | 61.96 mm | |
| Colour | grün | |
| Height | 15.5 mm | |
| Cable cross-section | 0,14-1,5 mm² | |
| Rated voltage | 400 V | |
| Rated current | 12 A | |
| Pin number | 12-polig | |
| Grid | 5.08 mm |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85369010 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Blei |
