1889262 | Phoenix Contact

PCB terminal, 1 pole, pitch 5 mm, AWG 24-14, 16 A, spring-clamp connection, green, 1889262

Order No.: 64P0587
EAN: 4017918167950
MPN:
1889262
ZFKDSA 1,5C-6,0
Series: ZFKDSA

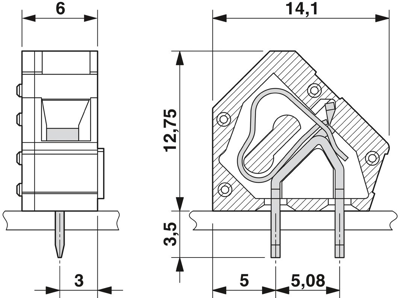

1889262 Phoenix Contact PCB Terminal Blocks Image 1

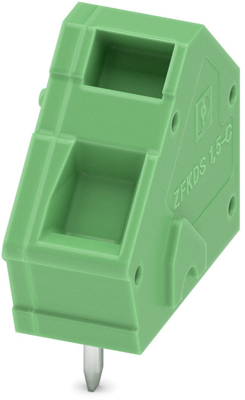

1889262 Phoenix Contact PCB Terminal Blocks Image 2

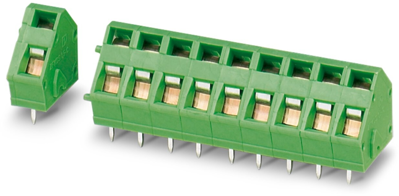

1889262 Phoenix Contact PCB Terminal Blocks Image 3
Image may differ
Unit Price (€ / pc.)
0.5593 € *
Available: 0 pcs.
Leadtime: 7 Weeks **
Total Price:
0.56 € *
Price list
Quantity
Price per unit*
1 pcs.
0.5593 €
10 pcs.
0.5236 €
50 pcs.
0.4760 €
100 pcs.
0.4165 €
*incl. VAT plus shipping costs
**Subject to prior sale

PCB terminal, 1889262, Phoenix Contact

PCB terminal block, nominal current: 16 A, rated voltage (III/2): 400 V, nominal cross section: 1.5 mm², number of potentials: 1, number of rows: 1, number of positions per row: 1, pitch: 5 mm, connection method: spring-cage connection, conductor/PCB connection direction: 45 °, color: green, pin layout: linear pinning, solder pin: 3.5 mm, number of solder pins per potential: 2.

Features

  • Defined contact force ensures that contact remains stable over the long term
  • Clamping space opened by means of fixed screwdriver enables convenient conductor connection
  • Angled connection enables multi-row arrangement on the PCB
  • Two solder pins reduce the mechanical strain on the soldering spots
  • The latching on the side enables various numbers of positions to be combined
Technical specifications
Anschluss Federklemmanschluss
AWG-Leiterquerschnitt AWG 24-14
Breite 6 mm
Farbe grün
Leiterquerschnitt 0,2-2,5 mm²
Nennspannung 400 V
Nennstrom 16 A
Polzahl 1-polig
Rastermaß 5 mm
Logistics
Ursprungsland PL
Zolltarifnummer 85369010
Compliance
RoHS konform Yes
Stand der RoHS-Richtlinie 3/31/15
SVHC frei Yes
