1889301 | Phoenix Contact
PCB terminal, 2 pole, pitch 5 mm, AWG 24-14, 16 A, spring-clamp connection, green, 1889301
Unit Price (€ / pc.)
1.0353 € *
Available: 0 pcs.
Available in 10 days: 10 pcs.
Leadtime: 1 Week **
Total Price:
1.04 € *
Price list
Quantity
Price per unit*
1 pcs.
1.0353 €
10 pcs.
0.9520 €
50 pcs.
0.8687 €
100 pcs.
0.7854 €
*incl. VAT plus shipping costs
**Subject to prior sale

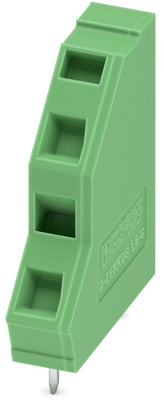

PCB terminal, 1889301, Phoenix Contact

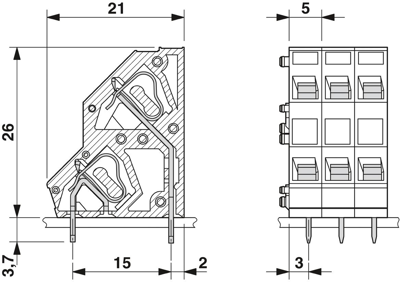

PCB terminal block, nominal current: 16 A, rated voltage (III/2): 400 V, nominal cross section: 1.5 mm², number of potentials: 2, number of rows: 2, number of positions per row: 1, pitch: 5 mm, connection method: spring-cage connection, conductor/PCB connection direction: 45 °, color: green, pin layout: linear pinning, solder pin: 3.7 mm, number of solder pins per potential: 1.
Features
- Defined contact force ensures that contact remains stable over the long term
- Clamping space opened by means of fixed screwdriver enables convenient conductor connection
- Conductor connection on several levels enables higher contact density

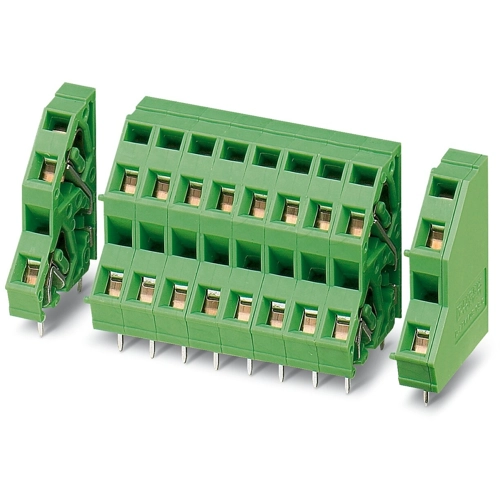

- The latching on the side enables various numbers of positions to be combined
Technical specifications
| Connection | spring-clamp connection | |
| AWG cross-section | AWG 24-14 | |
| Width | 5 mm | |
| Colour | green | |
| Height | 29.7 mm | |
| Cable cross-section | 0.2-2.5 mm² | |
| Rated voltage | 400 V | |
| Rated current | 16 A | |
| Pin number | 2 pole | |
| Grid | 5 mm |
Download
Logistics
| Country of origin | PL |
| Customs tariff number | 85369010 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
