1890154 | Phoenix Contact

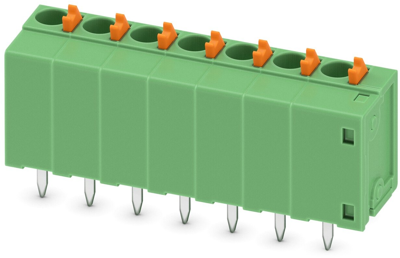

PCB terminal, 7 pole, pitch 5.08 mm, AWG 24-16, 15 A, spring-clamp connection, green, 1890154
Unit Price (€ / pc.)
4.9861 € *
Available: 0 pcs.
Leadtime: 10 Weeks **
Total Price:
4.99 € *
Price list
Quantity
Price per unit*
1 pcs.
4.9861 €
10 pcs.
4.5815 €
50 pcs.
4.1650 €
100 pcs.
3.7485 €
*incl. VAT plus shipping costs
**Subject to prior sale
PCB terminal, 1890154, Phoenix Contact
PCB terminal block, nominal current: 15 A, rated voltage (III/2): 400 V, nominal cross section: 1.5 mm², number of potentials: 7, number of rows: 1, number of positions per row: 7, pitch: 5.08 mm, connection method: push-in spring connection, conductor/PCB connection direction: 90 °, color: green, pin layout: linear double pinning, solder pin: 3.4 mm, number of solder pins per potential: 2.
Features
- Time saving push-in connection, tools not required
- Defined contact force ensures that contact remains stable over the long term
- Intuitive use through colour coded actuation lever
- Two solder pins reduce the mechanical strain on the soldering spots
- The latching on the side enables various numbers of positions to be combined
Technical specifications
| Connection | Federklemmanschluss | |
| AWG cross-section | AWG 24-16 | |
| Width | 38.1 mm | |
| Colour | grün | |
| Height | 19.2 mm | |
| Cable cross-section | 0,2-1,5 mm² | |
| Rated voltage | 320 V | |
| Rated current | 15 A | |
| Pin number | 7-polig | |
| Grid | 5.08 mm |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85369010 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
