1907979 | Phoenix Contact
PCB terminal, 6 pole, pitch 7.62 mm, AWG 24-12, 24 A, screw connection, green, 1907979
Unit Price (€ / pc.)
3.9746 € *
Available: 49 pcs.
Available in 10 days: 76 pcs.
Leadtime: 2 Weeks **

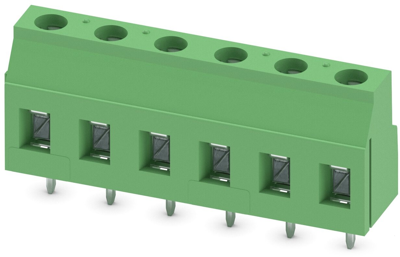

PCB terminal, 1907979, Phoenix Contact

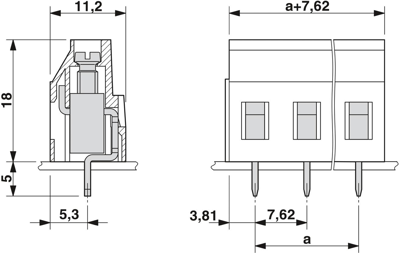

PCB terminal block, nominal current: 24 A, rated voltage (III/2): 630 V, nominal cross section: 2.5 mm², number of potentials: 6, number of rows: 1, number of positions per row: 6, pitch: 7.62 mm, connection method: screw connection with tension sleeve, screw head form: L slotted, conductor/PCB connection direction: 0 °, color: green, pin layout: linear pinning, solder pin: 5 mm, number of solder pins per potential: 1.
Features
- Low temperature rise, thanks to maximum contact force
- Allows connection of two conductors
- Larger pitch for increased voltage requirements
- Integrated protective guide prevents incorrect insertion of the conductor underneath the tension sleeve
- The latching on the side enables various numbers of positions to be combined
Technical specifications
| Connection | Schraubanschluss | |
| AWG cross-section | AWG 24-12 | |
| Width | 45.72 mm | |
| Colour | grün | |
| Height | 23 mm | |
| Cable cross-section | 0,2-4,0 mm² | |
| Rated voltage | 630 V | |
| Rated current | 24 A | |
| Pin number | 6-polig | |
| Grid | 7.62 mm |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85369010 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
