1928770 | Phoenix Contact

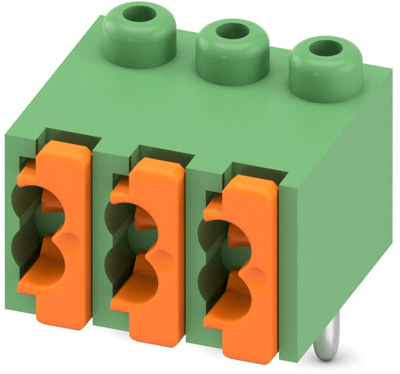

PCB terminal, 3 pole, pitch 3.5 mm, AWG 26-20, 4 A, spring-clamp connection, green, 1928770
Unit Price (€ / pc.)
0.9996 € *
Available: 0 pcs.
Available in 10 days: 26 pcs.
Leadtime: 1 Week **
Total Price:
1.00 € *
Price list
Quantity
Price per unit*
1 pcs.
0.9996 €
10 pcs.
0.9282 €
50 pcs.
0.8449 €
100 pcs.
0.7616 €
*incl. VAT plus shipping costs
**Subject to prior sale
PCB terminal, 1928770, Phoenix Contact
PCB terminal block, nominal current: 4 A, rated voltage (III/2): 250 V, nominal cross section: 0.5 mm², number of potentials: 3, number of rows: 1, number of positions per row: 3, pitch: 3.5 mm, connection method: push-in spring connection, conductor/PCB connection direction: 0 °, color: green, pin layout: linear pinning, solder pin: 4 mm, number of solder pins per potential: 1.
Features
- Time saving push-in connection, tools not required
- Defined contact force ensures that contact remains stable over the long term
- Intuitive use through colour coded actuation lever
- Potentials can be easily looped through – ideal for BUS applications

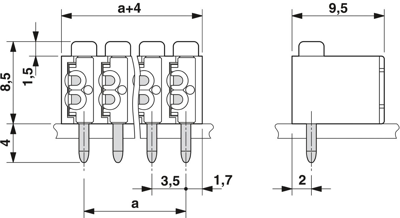

Technical specifications
| Connection | spring-clamp connection | |
| AWG cross-section | AWG 26-20 | |
| Width | 11 mm | |
| Colour | green | |
| Height | 12.5 mm | |
| Cable cross-section | 0.12-0.5 mm² | |
| Rated voltage | 250 V | |
| Rated current | 4 A | |
| Pin number | 3 pole | |
| Grid | 3.5 mm |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85369010 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
