1932559 | Phoenix Contact
PCB terminal, 8 pole, pitch 15 mm, AWG 20-2, 125 A, screw connection, green, 1932559
Unit Price (€ / pc.)
23.9666 € *
Available: 0 pcs.
Available in 10 days: 1,500 pcs.
Leadtime: 1 Week **

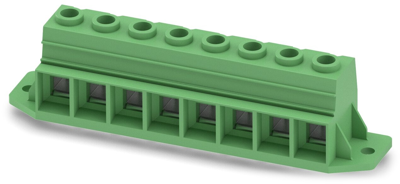

PCB terminal, 1932559, Phoenix Contact
PCB terminal block, nominal current: 125 A, rated voltage (III/2): 1000 V, nominal cross section: 35 mm², number of potentials: 8, number of rows: 1, number of positions per row: 8, pitch: 15 mm, connection method: screw connection with tension sleeve, conductor/PCB connection direction: 0 °, color: green, pin layout: linear pinning, solder pin: 4.5 mm, number of solder pins per potential: 4.
Features
- Low temperature rise, thanks to maximum contact force
- Allows connection of two conductors
- Quick and convenient testing using integrated test option
- Mounting flanges reduce the mechanical strain on the soldering spots
- Integrated protective guide prevents incorrect insertion of the conductor underneath the tension sleeve
Technical specifications
| Anschluss | Schraubanschluss | |
| AWG-Leiterquerschnitt | AWG 20-2 | |
| Breite | 150 mm | |
| Farbe | grün | |
| Höhe | 43.5 mm | |
| Leiterquerschnitt | 0,5-35 mm² | |
| Nennspannung | 1 kV | |
| Nennstrom | 125 A | |
| Polzahl | 8-polig | |
| Rastermaß | 15 mm |
Download
Logistics
| Ursprungsland | SK |
| Zolltarifnummer | 85369010 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
