1984413 | Phoenix Contact
PCB terminal, 12 pole, pitch 3.5 mm, AWG 26-16, 8 A, screw connection, green, 1984413
Unit Price (€ / pc.)
4.1055 € *
Available: 0 pcs.
Available in 10 days: 13 pcs.
Leadtime: 1 Week **

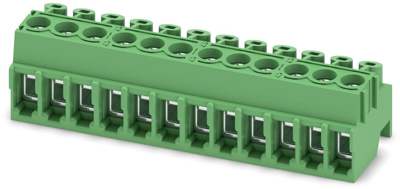

PCB terminal, 1984413, Phoenix Contact
PCB connector, nominal cross section: 1.5 mm², color: green, nominal current: 8 A, rated voltage (III/2): 200 V, contact surface: tin, type of contact: female connector, number of potentials: 12, number of rows: 1, number of positions: 12, number of connections: 12, pitch: 3.5 mm, connection method: screw connection with wire protector, conductor/PCB connection direction: 0 °, plug-in system: COMBICON PST 1,0, locking: without, mounting: without.
Features
- Low temperature rise, thanks to maximum contact force
- Allows connection of two conductors
- High terminal block capacity thanks to rectangular terminal block space
- The latching on the side enables various numbers of positions to be combined

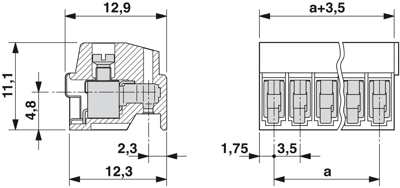

Technical specifications
| Connection | screw connection | |
| AWG cross-section | AWG 26-16 | |
| Width | 42 mm | |
| Colour | green | |
| Height | 11 mm | |
| Cable cross-section | 0.2-1.5 mm² | |
| Rated voltage | 200 V | |
| Rated current | 8 A | |
| Pin number | 12 pole | |
| Grid | 3.5 mm |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Lead |
