1984895 | Phoenix Contact
PCB terminal, 15 pole, pitch 3.5 mm, AWG 26-16, 17.5 A, screw connection, green, 1984895
Unit Price (€ / pc.)
5.3312 € *
Available: 48 pcs.
Leadtime: On Request **
Total Price:
5.33 € *
Price list
Quantity
Price per unit*
1 pcs.
5.3312 €
10 pcs.
4.9147 €
50 pcs.
4.4625 €
100 pcs.
4.0222 €
*incl. VAT plus shipping costs
**Subject to prior sale

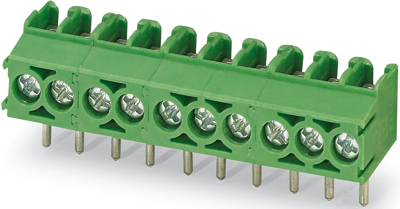

PCB terminal, 1984895, Phoenix Contact
PCB terminal block, nominal current: 17.5 A, rated voltage (III/2): 200 V, nominal cross section: 1.5 mm², number of potentials: 15, number of rows: 1, number of positions per row: 15, pitch: 3.5 mm, connection method: screw connection with wire protector, conductor/PCB connection direction: 90 °, color: green, pin layout: linear pinning, solder pin: 4.5 mm, number of solder pins per potential: 1.
Features
- Low temperature rise, thanks to maximum contact force
- Allows connection of two conductors
- High terminal block capacity thanks to rectangular terminal block space
- The latching on the side enables various numbers of positions to be combined

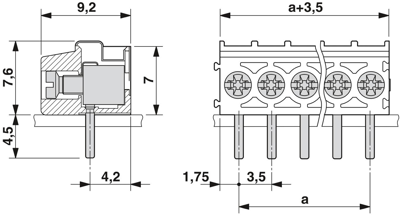

Technical specifications
| Anschluss | Schraubanschluss | |
| AWG-Leiterquerschnitt | AWG 26-16 | |
| Breite | 52.5 mm | |
| Farbe | grün | |
| Höhe | 12.05 mm | |
| Leiterquerschnitt | 0,2-1,5 mm² | |
| Nennspannung | 200 V | |
| Nennstrom | 17.5 A | |
| Polzahl | 15-polig | |
| Rastermaß | 3.5 mm | |
| Tiefe | 9.15 mm |
Download
Logistics
| Ursprungsland | DE |
| Zolltarifnummer | 85369010 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
