1987054 | Phoenix Contact
PCB terminal, 10 pole, pitch 10 mm, AWG 24-6, 76 A, spring-clamp connection, green, 1987054
Unit Price (€ / pc.)
1.9397 € *
Available: 0 pcs.
Available in 10 days: 2,593 pcs.
Leadtime: 1 Week **
Total Price:
1.94 € *
Price list
Quantity
Price per unit*
1 pcs.
1.9397 €
10 pcs.
1.7850 €
50 pcs.
1.6184 €
100 pcs.
1.4637 €
*incl. VAT plus shipping costs
**Subject to prior sale

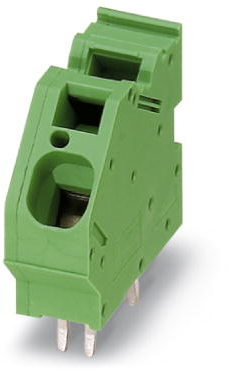

PCB terminal, 1987054, Phoenix Contact
PCB terminal block, nominal current: 76 A, rated voltage (III/2): 400 V, nominal cross section: 10 mm², number of potentials: 1, number of rows: 1, number of positions per row: 1, pitch: 10 mm, connection method: spring-cage connection, conductor/PCB connection direction: 45 °, color: green, pin layout: linear pinning, solder pin: 6.5 mm, number of solder pins per potential: 4.
Features
- Defined contact force ensures that contact remains stable over the long term
- Clamping space opened by means of fixed screwdriver enables convenient conductor connection
- Separate bridge shaft for easily connecting multiple positions to jumpers
- Quick and convenient testing using integrated test option
Technical specifications
| Anschluss | Federklemmanschluss | |
| AWG-Leiterquerschnitt | AWG 24-6 | |
| Breite | 11.7 mm | |
| Farbe | grün | |
| Höhe | 33.5 mm | |
| Leiterquerschnitt | 0,2-16 mm² | |
| Nennspannung | 400 V | |
| Nennstrom | 76 A | |
| Polzahl | 10-polig | |
| Rastermaß | 10 mm |
Download
Logistics
| Ursprungsland | PL |
| Zolltarifnummer | 85369010 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
