1987724 | Phoenix Contact

PCB terminal, 2 pole, pitch 5 mm, AWG 20-10, 32 A, screw connection, green, 1987724

Order No.: 09H2420
EAN: 4017918973193
MPN:
1987724
PT 2,5/ 2-5,0-V
Series: PT
Phoenix Contact

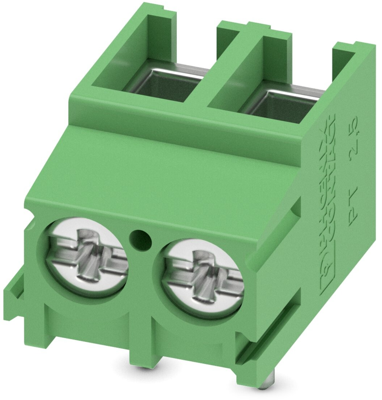

1987724 Phoenix Contact PCB Terminal Blocks Image 1

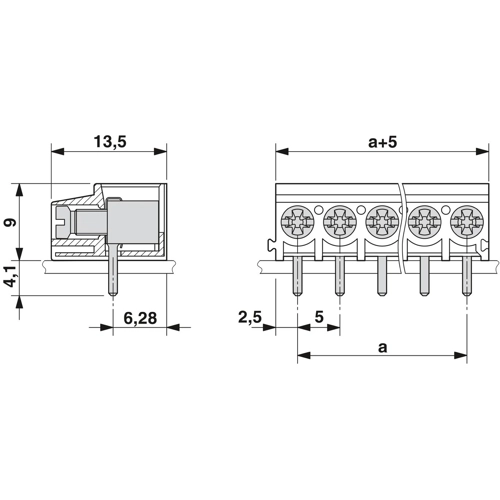

1987724 Phoenix Contact PCB Terminal Blocks Image 2
Image may differ
Unit Price (€ / pc.)
0.8925 € *
Available: 230 pcs.
Available in 10 days: 4,225 pcs.
Leadtime: 2 Weeks **
Total Price:
0.89 € *
Price list
Quantity
Price per unit*
1 pcs.
0.8925 €
10 pcs.
0.8092 €
100 pcs.
0.6902 €
*incl. VAT plus shipping costs
**Subject to prior sale

PCB terminal, 1987724, Phoenix Contact

PCB terminal block, nominal current: 32 A, rated voltage (III/2): 400 V, nominal cross section: 2.5 mm², number of potentials: 2, number of rows: 1, number of positions per row: 2, pitch: 5 mm, connection method: screw connection with wire protector, conductor/PCB connection direction: 90 °, color: green, pin layout: linear pinning, solder pin: 4.1 mm, number of solder pins per potential: 1.

Features

  • Low temperature rise, thanks to maximum contact force
  • Allows connection of two conductors
  • High terminal block capacity thanks to rectangular terminal block space
  • The latching on the side enables various numbers of positions to be combined
Technical specifications
Connection screw connection
AWG cross-section AWG 20-10
Width 10 mm
Colour green
Height 13.1 mm
Cable cross-section 0.5-4.0 mm²
Rated voltage 400 V
Rated current 32 A
Pin number 2 pole
Grid 5 mm
Depth 13.5 mm
Logistics
Country of origin PL
Customs tariff number 85369010
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
