1987834 | Phoenix Contact

PCB terminal, 1987834, Phoenix Contact

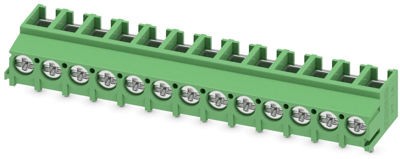

PCB terminal block, nominal current: 32 A, rated voltage (III/2): 400 V, nominal cross section: 2.5 mm², number of potentials: 13, number of rows: 1, number of positions per row: 13, pitch: 5 mm, connection method: screw connection with wire protector, conductor/PCB connection direction: 90 °, color: green, pin layout: linear pinning, solder pin: 4.1 mm, number of solder pins per potential: 1.

Features

• Low temperature rise, thanks to maximum contact force
• Allows connection of two conductors
• High terminal block capacity thanks to rectangular terminal block space
• The latching on the side enables various numbers of positions to be combined
