1987973 | Phoenix Contact
PCB terminal, 4 pole, pitch 7.5 mm, AWG 20-10, 32 A, screw connection, green, 1987973
Unit Price (€ / pc.)
1.5946 € *
Available: 0 pcs.
Leadtime: 7 Weeks **

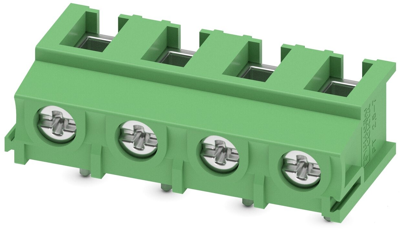

PCB terminal, 1987973, Phoenix Contact
PCB terminal block, nominal current: 32 A, rated voltage (III/2): 800 V, nominal cross section: 2.5 mm², number of potentials: 4, number of rows: 1, number of positions per row: 4, pitch: 7.5 mm, connection method: screw connection with wire protector, conductor/PCB connection direction: 90 °, color: green, pin layout: linear pinning, solder pin: 4.1 mm, number of solder pins per potential: 1.
Features
- Low temperature rise, thanks to maximum contact force
- Allows connection of two conductors
- High terminal block capacity thanks to rectangular terminal block space
- The latching on the side enables various numbers of positions to be combined

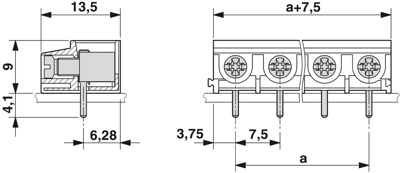

Technical specifications
| Connection | screw connection | |
| AWG cross-section | AWG 20-10 | |
| Width | 30 mm | |
| Colour | green | |
| Height | 13.1 mm | |
| Cable cross-section | 0.5-4.0 mm² | |
| Rated voltage | 800 V | |
| Rated current | 32 A | |
| Pin number | 4 pole | |
| Grid | 7.5 mm | |
| Depth | 13.5 mm |
Download
Logistics
| Country of origin | PL |
| Customs tariff number | 85369010 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
