1988040 | Phoenix Contact

PCB terminal, 11 pole, pitch 7.5 mm, AWG 20-10, 32 A, screw connection, green, 1988040

Order No.: 09H2479
EAN: 4046356036573
MPN:
1988040
PT 2,5/11-7,5-V
Series: PT
Phoenix Contact

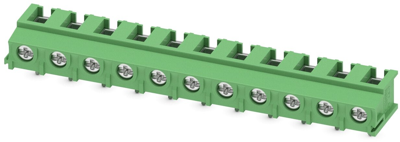

1988040 Phoenix Contact PCB Terminal Blocks Image 1
1988040 Phoenix Contact PCB Terminal Blocks Image 2
Image may differ
Unit Price (€ / pc.)
5.9381 € *
Available: 50 pcs.
Leadtime: 7 Weeks **
Total Price:
5.94 € *
Price list
Quantity
Price per unit*
1 pcs.
5.9381 €
10 pcs.
5.4621 €
50 pcs.
4.9742 €
100 pcs.
4.4744 €
*incl. VAT plus shipping costs
**Subject to prior sale

PCB terminal, 1988040, Phoenix Contact

PCB terminal block, nominal current: 32 A, rated voltage (III/2): 800 V, nominal cross section: 2.5 mm², number of potentials: 11, number of rows: 1, number of positions per row: 11, pitch: 7.5 mm, connection method: screw connection with wire protector, conductor/PCB connection direction: 90 °, color: green, pin layout: linear pinning, solder pin: 4.1 mm, number of solder pins per potential: 1.

Features

  • Low temperature rise, thanks to maximum contact force
  • Allows connection of two conductors
  • High terminal block capacity thanks to rectangular terminal block space
  • The latching on the side enables various numbers of positions to be combined
Technical specifications
Connection screw connection
AWG cross-section AWG 20-10
Width 82.5 mm
Colour green
Height 13.1 mm
Cable cross-section 0.5-4.0 mm²
Rated voltage 800 V
Rated current 32 A
Pin number 11 pole
Grid 7.5 mm
Depth 13.5 mm
Logistics
Country of origin PL
Customs tariff number 85369010
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
