1988118 | Phoenix Contact
PCB terminal, 3 pole, pitch 7.5 mm, AWG 20-10, 32 A, screw connection, green, 1988118
Unit Price (€ / pc.)
1.6303 € *
Available: 401 pcs.
Available in 10 days: 1,500 pcs.
Leadtime: 2 Weeks **
Total Price:
1.63 € *
Price list
Quantity
Price per unit*
1 pcs.
1.6303 €
25 pcs.
1.3923 €
100 pcs.
1.2971 €
250 pcs.
1.2257 €
1000 pcs.
1.1186 €
*incl. VAT plus shipping costs
**Subject to prior sale

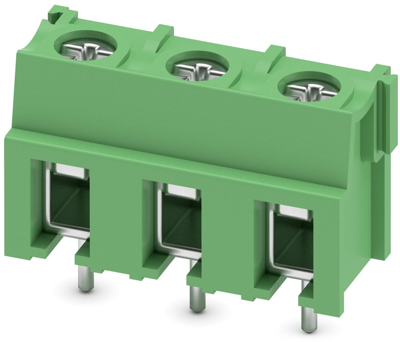

PCB terminal, 1988118, Phoenix Contact
PCB terminal block, nominal current: 32 A, rated voltage (III/2): 800 V, nominal cross section: 2.5 mm², number of potentials: 3, number of rows: 1, number of positions per row: 3, pitch: 7.5 mm, connection method: screw connection with wire protector, screw head form: H1L Philipps recess with slotted Torx, conductor/PCB connection direction: 0 °, color: green, pin layout: linear pinning, solder pin: 4.1 mm, number of solder pins per potential: 1.
Features
- Low temperature rise, thanks to maximum contact force
- Allows connection of two conductors
- High terminal block capacity thanks to rectangular terminal block space
- The latching on the side enables various numbers of positions to be combined

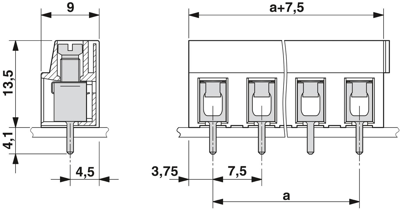

Technical specifications
| Connection | screw connection | |
| AWG cross-section | AWG 20-10 | |
| Width | 22.5 mm | |
| Colour | green | |
| Height | 17.6 mm | |
| Cable cross-section | 0.5-4.0 mm² | |
| Rated voltage | 800 V | |
| Rated current | 32 A | |
| Pin number | 3 pole | |
| Grid | 7.5 mm | |
| Depth | 9 mm |
Download
Logistics
| Country of origin | PL |
| Customs tariff number | 85369010 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Lead |
