1988176 | Phoenix Contact

PCB terminal, 9 pole, pitch 7.5 mm, AWG 20-10, 32 A, screw connection, green, 1988176

Order No.: 09H2457
EAN: 4046356036702
MPN:
1988176
PT 2,5/ 9-7,5-H
Series: PT
Phoenix Contact

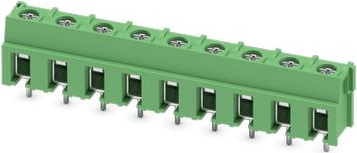

1988176 Phoenix Contact PCB Terminal Blocks Image 1

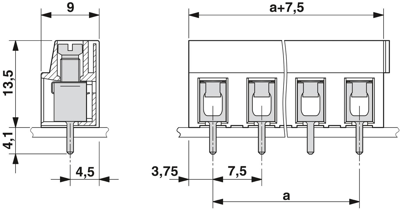

1988176 Phoenix Contact PCB Terminal Blocks Image 2
Image may differ
Unit Price (€ / pc.)
4.4030 € *
Available: 100 pcs.
Leadtime: 7 Weeks **
Total Price:
4.40 € *
Price list
Quantity
Price per unit*
1 pcs.
4.4030 €
10 pcs.
4.0579 €
50 pcs.
3.6890 €
100 pcs.
3.3201 €
*incl. VAT plus shipping costs
**Subject to prior sale

PCB terminal, 1988176, Phoenix Contact

PCB terminal block, nominal current: 32 A, rated voltage (III/2): 800 V, nominal cross section: 2.5 mm², number of potentials: 9, number of rows: 1, number of positions per row: 9, pitch: 7.5 mm, connection method: screw connection with wire protector, screw head form: H1L Philipps recess with slotted Torx, conductor/PCB connection direction: 0 °, color: green, pin layout: linear pinning, solder pin: 4.1 mm, number of solder pins per potential: 1.

Features

  • Low temperature rise, thanks to maximum contact force
  • Allows connection of two conductors
  • High terminal block capacity thanks to rectangular terminal block space
  • The latching on the side enables various numbers of positions to be combined
Technical specifications
Connection screw connection
AWG cross-section AWG 20-10
Width 67.5 mm
Colour green
Height 17.6 mm
Cable cross-section 0.5-4.0 mm²
Rated voltage 800 V
Rated current 32 A
Pin number 9 pole
Grid 7.5 mm
Depth 9 mm
Logistics
Country of origin PL
Customs tariff number 85369010
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free No
Substance description Lead
