1990232 | Phoenix Contact
PCB terminal, 24 pole, pitch 2.5 mm, AWG 24-20, 2 A, spring-clamp connection, green, 1990232
Unit Price (€ / pc.)
4.3197 € *
Available: 0 pcs.
Available in 10 days: 782 pcs.
Leadtime: 1 Week **

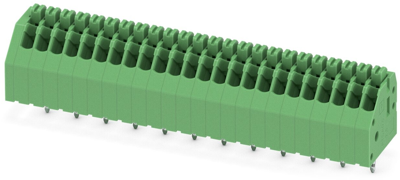

PCB terminal, 1990232, Phoenix Contact
PCB terminal block, nominal current: 2 A, rated voltage (III/2): 250 V, nominal cross section: 0.5 mm², number of potentials: 24, number of rows: 1, number of positions per row: 24, pitch: 2.5 mm, connection method: push-in spring connection, conductor/PCB connection direction: 45 °, color: green, pin layout: Zigzag pinning W, solder pin: 3.6 mm, number of solder pins per potential: 1.
Features
- Time saving push-in connection, tools not required
- Defined contact force ensures that contact remains stable over the long term
- Angled connection enables multi-row arrangement on the PCB
Technical specifications
| Anschluss | Federklemmanschluss | |
| AWG-Leiterquerschnitt | AWG 24-20 | |
| Breite | 61.5 mm | |
| Farbe | grün | |
| Höhe | 16.7 mm | |
| Leiterquerschnitt | 0,14-0,5 mm² | |
| Nennspannung | 250 V | |
| Nennstrom | 2 A | |
| Polzahl | 24-polig | |
| Rastermaß | 2.5 mm |
Download
Logistics
| Ursprungsland | PL |
| Zolltarifnummer | 85369010 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
