1990892 | Phoenix Contact
PCB terminal, 6 pole, pitch 3.5 mm, AWG 24-16, 17.5 A, spring-clamp connection, green, 1990892
Unit Price (€ / pc.)
2.0468 € *
Available: 0 pcs.
Available in 10 days: 2,040 pcs.
Leadtime: 1 Week **

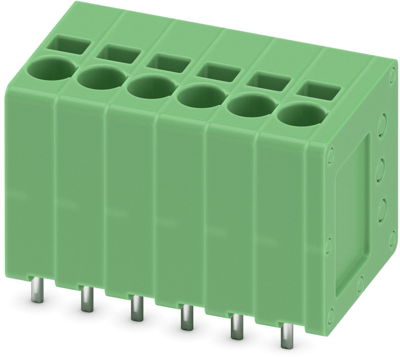

PCB terminal, 1990892, Phoenix Contact

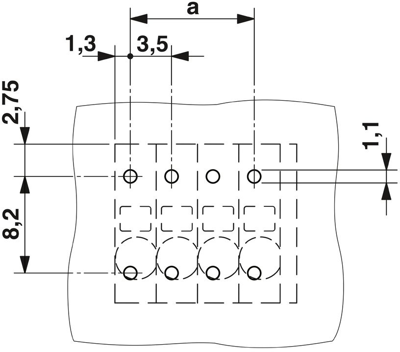

PCB terminal block, nominal current: 17.5 A, rated voltage (III/2): 200 V, nominal cross section: 1.5 mm², number of potentials: 6, number of rows: 1, number of positions per row: 6, pitch: 3.5 mm, connection method: push-in spring connection, conductor/PCB connection direction: 90 °, color: green, pin layout: linear double pinning, solder pin: 2.5 mm, number of solder pins per potential: 2.
Features
- Time saving push-in connection, tools not required
- Defined contact force ensures that contact remains stable over the long term
- Clamping space opened by means of fixed screwdriver enables convenient conductor connection
- Operation and conductor connection from one direction enable integration into front of device
- Two solder pins reduce the mechanical strain on the soldering spots
Technical specifications
| Anschluss | Federklemmanschluss | |
| AWG-Leiterquerschnitt | AWG 24-16 | |
| Breite | 22.4 mm | |
| Farbe | grün | |
| Höhe | 16.9 mm | |
| Leiterquerschnitt | 0,2-1,5 mm² | |
| Nennspannung | 200 V | |
| Nennstrom | 17.5 A | |
| Polzahl | 6-polig | |
| Rastermaß | 3.5 mm |
Download
Logistics
| Ursprungsland | PL |
| Zolltarifnummer | 85369010 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
