1990957 | Phoenix Contact

PCB terminal, 12 pole, pitch 3.5 mm, AWG 24-16, 17.5 A, spring-clamp connection, green, 1990957

Order No.: 63P9290
EAN: 4046356104586
MPN:
1990957
SPT 1,5/12-V-3,5
Series: SPT
Phoenix Contact

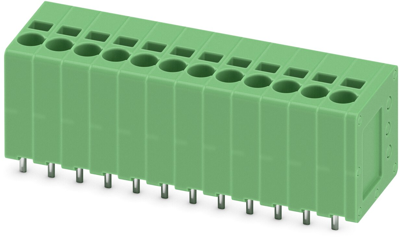

1990957 Phoenix Contact PCB Terminal Blocks Image 1

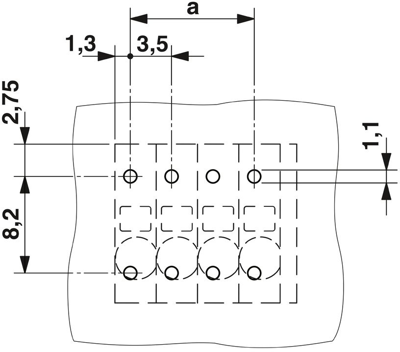

1990957 Phoenix Contact PCB Terminal Blocks Image 2
Image may differ
Unit Price (€ / pc.)
5.3193 € *
Available: 20 pcs.
Available in 10 days: 20 pcs.
Leadtime: 2 Weeks **
Total Price:
5.32 € *
Price list
Quantity
Price per unit*
1 pcs.
5.3193 €
10 pcs.
4.8909 €
50 pcs.
4.4506 €
100 pcs.
4.0103 €
*incl. VAT plus shipping costs
**Subject to prior sale

PCB terminal, 1990957, Phoenix Contact

PCB terminal block, nominal current: 17.5 A, rated voltage (III/2): 200 V, nominal cross section: 1.5 mm², number of potentials: 12, number of rows: 1, number of positions per row: 12, pitch: 3.5 mm, connection method: push-in spring connection, conductor/PCB connection direction: 90 °, color: green, pin layout: linear double pinning, solder pin: 2.5 mm, number of solder pins per potential: 2.

Features

  • Time saving push-in connection, tools not required
  • Defined contact force ensures that contact remains stable over the long term
  • Clamping space opened by means of fixed screwdriver enables convenient conductor connection
  • Operation and conductor connection from one direction enable integration into front of device
  • Two solder pins reduce the mechanical strain on the soldering spots
Technical specifications
Connection spring-clamp connection
AWG cross-section AWG 24-16
Width 43.4 mm
Colour green
Height 16.9 mm
Cable cross-section 0.2-1.5 mm²
Rated voltage 200 V
Rated current 17.5 A
Pin number 12 pole
Grid 3.5 mm
Logistics
Country of origin PL
Customs tariff number 85369010
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
