1991338 | Phoenix Contact

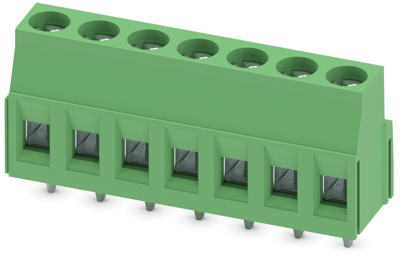

PCB terminal, 7 pole, pitch 5.08 mm, AWG 24-14, 16 A, screw connection, green, 1991338
Unit Price (€ / pc.)
2.7846 € *
Available: 0 pcs.
Leadtime: 8 Weeks **
Total Price:
2.78 € *
Price list
Quantity
Price per unit*
1 pcs.
2.7846 €
10 pcs.
2.5585 €
50 pcs.
2.3324 €
100 pcs.
2.0944 €
*incl. VAT plus shipping costs
**Subject to prior sale
PCB terminal, 1991338, Phoenix Contact
PCB terminal block, nominal current: 24 A, rated voltage (III/2): 400 V, nominal cross section: 2.5 mm², number of potentials: 7, number of rows: 1, number of positions per row: 7, pitch: 5.08 mm, connection method: screw connection with tension sleeve, screw head form: H1L Philipps recess with slotted Torx, conductor/PCB connection direction: 0 °, color: green, pin layout: linear pinning, solder pin: 3.5 mm, number of solder pins per potential: 1.
Features
- Low temperature rise, thanks to maximum contact force
- Allows connection of two conductors
- Extremely small design for the respective conductor cross section
- Integrated protective guide prevents incorrect insertion of the conductor underneath the tension sleeve
- The latching on the side enables various numbers of positions to be combined

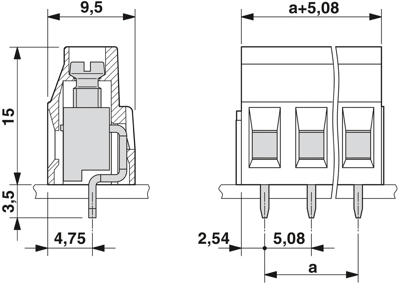

Technical specifications
| Connection | screw connection | |
| AWG cross-section | AWG 24-14 | |
| Width | 35.56 mm | |
| Colour | green | |
| Height | 18.5 mm | |
| Cable cross-section | 0.2-2.5 mm² | |
| Rated voltage | 400 V | |
| Rated current | 16 A | |
| Pin number | 7 pole | |
| Grid | 5.08 mm |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85369010 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
