2890946 | Phoenix Contact

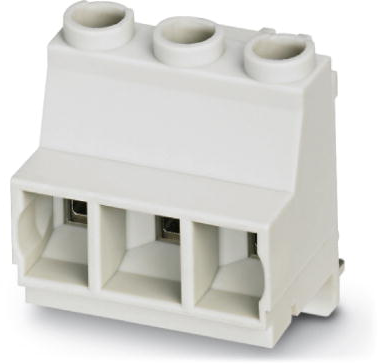

PCB terminal, 3 pole, pitch 7.5 mm, AWG 24-14, 24 A, screw connection, light gray, 2890946
Unit Price (€ / pc.)
3.6176 € *
Available: 0 pcs.
Available in 10 days: 189 pcs.
Leadtime: 1 Week **
PCB terminal, 2890946, Phoenix Contact
PCB terminal block, nominal current: 24 A, rated voltage (III/2): 630 V, nominal cross section: 2.5 mm², number of rows: 1, number of positions per row: 3, pitch: 7.5 mm, connection method: screw connection with tension sleeve, conductor/PCB connection direction: 0 °, color: light gray, pin layout: linear pinning, solder pin: 3.5 mm, number of solder pins per potential: 1.
Features
- Maintenance-free and vibration-resistant
- PCB terminal block is orthogonal to the PCB
Technical specifications
Anschluss | Schraubanschluss | |
AWG-Leiterquerschnitt | AWG 24-14 | |
Breite | 20.8 mm | |
Farbe | hellgrau | |
Höhe | 23.25 mm | |
Leiterquerschnitt | 0,2-2,5 mm² | |
Nennspannung | 600 V | |
Nennstrom | 24 A | |
Polzahl | 3-polig | |
Rastermaß | 7.5 mm |
Download
Logistics
Ursprungsland | DE |
Zolltarifnummer | 85369010 |
Compliance
RoHS konform | Yes |
Stand der RoHS-Richtlinie | 3/31/15 |
SVHC frei | Yes |
