2901701 | Phoenix Contact

Loop bridge, 3 m, 2.5 mm², 2901701

Order No.: 64P3190
EAN: 4046356624701
MPN:
2901701
Series: CONTACTRON
2901701 Phoenix Contact Pre-assembled Connector Systems Image 1
2901701 Phoenix Contact Pre-assembled Connector Systems Image 2
2901701 Phoenix Contact Pre-assembled Connector Systems Image 3
Image may differ
Unit Price (€ / pc.)
79.5872 € *
Available: 0 pcs.
Next delivery: 1 pcs. on 2025-04-25
Available in 10 days: 7 pcs.
Leadtime: 2 Weeks **
Total Price:
79.59 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
79.5872 €

Bridge, 2901701, Phoenix Contact

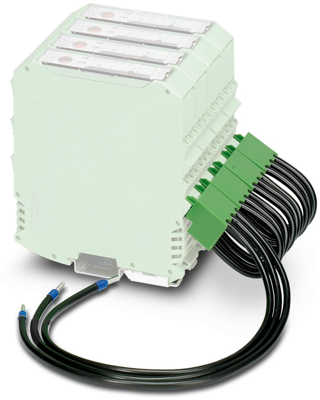

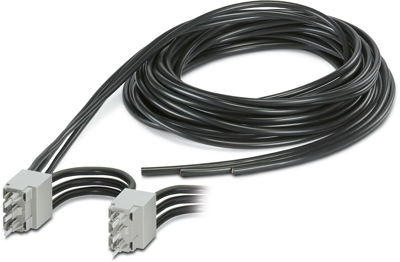

3-phase loop bridge for 9 CONTACTRON modules, with screw connection and 22.5 mm housing width, connecting cable: 3 m.

Features

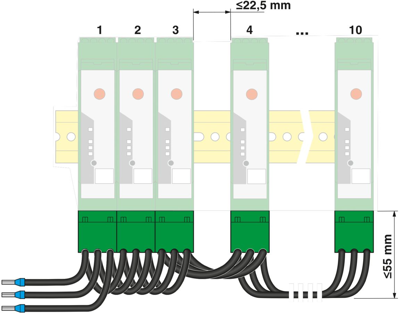

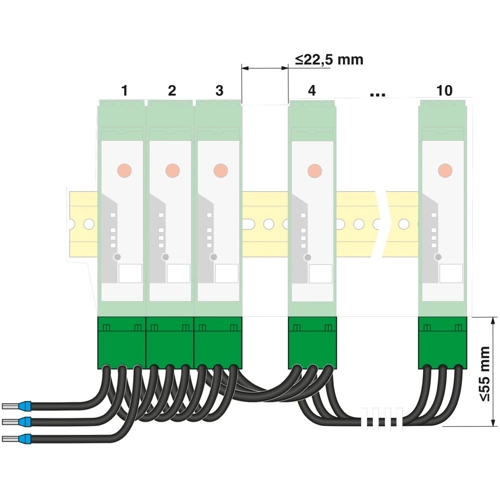

  • Bridging of 2 to 10 devices with maximum module spacing of 22.5 mm
  • Considerable reduction in wiring
Technical specifications
Version Schleifenbrücke
Connection 1 design gerade
Connection 2 design gerade
Cable length 3 m
Cable cross-section 2,5 mm²
Logistics
Country of origin DE
Customs tariff number 85444290
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free No
