3240049 | Phoenix Contact

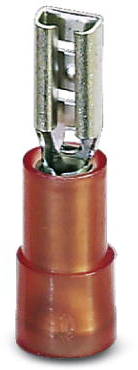

Insulated flat plug sleeve, 2.8 x 0.8 mm, 0.5 to 1.5 mm², AWG 20 to 16, brass, tin-plated, red, 3240049
Unit Price (€ / pc.)
0.6307 € *
Available: 0 pcs.
Available in 10 days: 11,000 pcs.
Leadtime: 2 Weeks **
Total Price:
0.63 € *
Price list
Quantity
Price per unit*
1 pcs.
0.6307 €
5 pcs.
0.5355 €
10 pcs.
0.4879 €
50 pcs.
0.4403 €
100 pcs.
0.3927 €
*incl. VAT plus shipping costs
**Subject to prior sale
Connector C-SCFI 1,5/2,8X0,8
Flat plug sleeve, red, 0,5-1,5 mm², 2,8 x 0,8
The technical features of 3240049 from Phoenix Contact at a glance
- Article description : C-SCFI 1,5/2,8X0,8
- Flange shape : Flat plug sleeve
- Isolation present : Yes
- Product type designation : Connector
- Product compliant (following DIN) : No
- min. Nominal cross section : 0.5 mm²
- max. area of the nominal cross section : 1.5 mm²
Technical specifications
| Connection | crimp connection | |
| Version | flat plug sleeve | |
| AWG cross-section | AWG 20 to 16 | |
| Insulation colour | red | |
| Suitable for | 2.8 x 0.8 mm | |
| Isolated | Yes | |
| Length | 18.5 mm | |
| Cable cross-section | 0.5 to 1.5 mm² | |
| Material | brass, tin-plated |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
