3240050 | Phoenix Contact

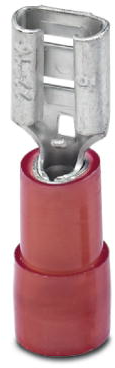

Insulated flat plug sleeve, 4.8 x 0.5 mm, 0.5 to 1.5 mm², AWG 20 to 16, brass, tin-plated, red, 3240050
Unit Price (€ / pc.)
0.3808 € *
Available: 0 pcs.
Available in 10 days: 1,700 pcs.
Leadtime: 2 Weeks **
Connector C-SCFI 1,5/4,8X0,5
Flat plug sleeve, red, 0,5-1,5 mm², 4,8 x 0,5
The technical features of 3240050 from Phoenix Contact at a glance
- Product compliant (following DIN) : No
- Product type designation : Connector
- Isolation present : Yes
- Flange shape : Flat plug sleeve
- Article description : C-SCFI 1,5/4,8X0,5
- max. area of the nominal cross section : 1.5 mm²
- min. Nominal cross section : 0.5 mm²
Technical specifications
| Connection | crimp connection | |
| Version | flat plug sleeve | |
| AWG cross-section | AWG 20 to 16 | |
| Insulation colour | red | |
| Suitable for | 4.8 x 0.5 mm | |
| Isolated | Yes | |
| Length | 19.5 mm | |
| Cable cross-section | 0.5 to 1.5 mm² | |
| Material | brass, tin-plated |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
