3240056 | Phoenix Contact

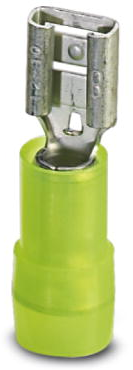

Insulated flat plug sleeve, 6.3 x 0.8 mm, 4.0 to 6.0 mm², AWG 12 to 10, brass, tin-plated, yellow, 3240056
Unit Price (€ / pc.)
0.3332 € *
Available: 0 pcs.
Available in 10 days: 22,500 pcs.
Leadtime: 2 Weeks **
Connector C-SCFI 6/6,3X0,8
Flat plug sleeve, yellow, 4-6 mm², 6,3 x 0,8
The technical features of 3240056 from Phoenix Contact at a glance
- Product type designation : Connector
- Isolation present : Yes
- Flange shape : Flat plug sleeve
- Article description : C-SCFI 6/6,3X0,8
- max. area of the nominal cross section : 6 mm²
- min. Nominal cross section : 4 mm²
Technical specifications
| Connection | crimp connection | |
| Version | flat plug sleeve | |
| AWG cross-section | AWG 12 to 10 | |
| Insulation colour | yellow | |
| Suitable for | 6.3 x 0.8 mm | |
| Isolated | Yes | |
| Length | 25 mm | |
| Cable cross-section | 4.0 to 6.0 mm² | |
| Material | brass, tin-plated |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
