3240159 | Phoenix Contact

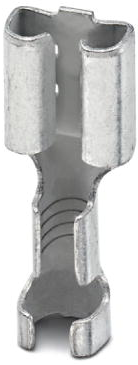

Uninsulated flat plug sleeve, 6.3 x 0.8 mm, 1.5 to 2.5 mm², AWG 16 to 14, brass, tin-plated, 3240159

Order No.: 60P7392
EAN: 4046356453769
MPN:
3240159
C-SCF 2,5/6,3X0,8
Series: C-SCF
Phoenix Contact
3240159 Phoenix Contact Receptacles
Image may differ
Unit Price (€ / pc.)
0.3213 € *
Available: 0 pcs.
Available in 10 days: 26,100 pcs.
Leadtime: 2 Weeks **
Total Price:
0.32 € *
*incl. VAT plus shipping costs
**Subject to prior sale
100 pcs.
0.3213 €

Connector C-SCF 2,5/6,3X0,8

Flat plug sleeve, uninsulated, 1,5-2,5 mm², 6,3 x 0,8

The technical features of 3240159 from Phoenix Contact at a glance

  • Werkstoff : Messing
  • Article description : C-SCF 2,5/6,3X0,8
  • Art der Verbindung : Steckverbindung
  • Anzahl der Abzweige : 1
  • Farbe der Isolation : nicht zutreffend
  • Form der Hülse : kurz
  • Isolation : Keine
  • Ölstopp/Mittelsteg vorhanden : No
  • max. AWG-Nummer : 14
  • geeignet für Rundleiter : No
  • geeignet für Lackdraht : No
  • geeignet für Flachleiter : No
  • geeignet für zugfeste Verbindung : Yes
  • geeignet für mehrdrähtige Leiter : Yes
  • geeignet für massive Leiter : No
  • geeignet für hohe Temperaturen (bis 650 °C) : No
  • geeignet für feindrähtige Leiter : Yes
  • max. area of the nominal cross section : 2.5 mm²
  • min. Nominal cross section : 1.5 mm²
  • min AWG-Nummer : 16

Further links to Phoenix Contact 3240159

Under the following links you will find more information about Phoenix Contact 3240159

Technical specifications
Connection crimp connection
Version flat plug sleeve
AWG cross-section AWG 16 to 14
Suitable for 6.3 x 0.8 mm
Isolated No
Length 19.2 mm
Cable cross-section 1.5 to 2.5 mm²
Material brass, tin-plated
Logistics
Country of origin DE
Customs tariff number 85369010
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
