3240535 | Phoenix Contact

Insulated flat plug sleeve, 2.8 x 0.8 mm, 0.5 to 1.5 mm², AWG 20 to 16, brass, red, 3240535

Order No.: 60P7395
EAN: 4046356528054
MPN:
3240535
C-SCFFI 1,5/2,8X0,8
Series: C-SCFFI
Phoenix Contact
3240535 Phoenix Contact Receptacles
Image may differ
Unit Price (€ / pc.)
0.6069 € *
Available: 2 pcs.
Available in 10 days: 50 pcs.
Leadtime: 2 Weeks **
Total Price:
0.61 € *
Price list
Quantity
Price per unit*
1 pcs.
0.6069 €
10 pcs.
0.5593 €
50 pcs.
0.5117 €
100 pcs.
0.4522 €
*incl. VAT plus shipping costs
**Subject to prior sale

Connector C-SCFFI 1,5/2,8X0,8

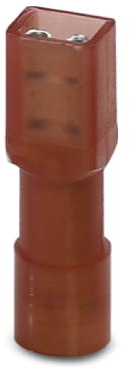

Flat receptacle, fully insulated, red, 0,5-1,5 mm², For plug 2,8 x 0,8 mm

The technical features of 3240535 from Phoenix Contact at a glance

  • Flange shape : Flat plug sleeve
  • Product type designation : Connector
  • Product compliant (following DIN) : No
  • Isolation present : Yes
  • Article description : C-SCFFI 1,5/2,8X0,8
  • max. area of the nominal cross section : 1.5 mm²
  • min. Nominal cross section : 0.5 mm²
Technical specifications
Connection crimp connection
Version flat plug sleeve
AWG cross-section AWG 20 to 16
Insulation colour red
Suitable for 2.8 x 0.8 mm
Isolated Yes
Length 19 mm
Cable cross-section 0.5 to 1.5 mm²
Material brass
Logistics
Country of origin CN
Customs tariff number 85366990
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
