3240539 | Phoenix Contact
Insulated flat plug sleeve, 4.8 x 0.5 mm, 1.5 to 2.5 mm², AWG 16 to 14, brass, blue, 3240539
Unit Price (€ / pc.)
0.5593 € *
Available: 0 pcs.
Available in 10 days: 1,800 pcs.
Leadtime: 2 Weeks **

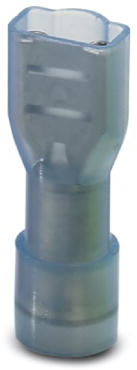

Connector C-SCFFI 2,5/4,8X0,5
Flat receptacle, fully insulated, blue, 1,5-2,5 mm², For plug 4,8 x 0,5 mm
The technical features of 3240539 from Phoenix Contact at a glance
- Flange shape : Flat plug sleeve
- Product type designation : Connector
- Product compliant (following DIN) : No
- Isolation present : Yes
- Article description : C-SCFFI 2,5/4,8X0,5
- max. area of the nominal cross section : 2.5 mm²
- min. Nominal cross section : 1.5 mm²
Technical specifications
| Connection | crimp connection | |
| Version | flat plug sleeve | |
| AWG cross-section | AWG 16 to 14 | |
| Insulation colour | blue | |
| Suitable for | 4.8 x 0.5 mm | |
| Isolated | Yes | |
| Length | 20 mm | |
| Cable cross-section | 1.5 to 2.5 mm² | |
| Material | brass |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
