1407712 | Phoenix Contact

Connector kit, size B16, 16 pole + PE , IP66, 1407712

Order No.: 62P2368
EAN: 4046356777773
MPN:
1407712
HC-EVO-B16PT-BWD-HH-M25-PLRBK
Series: HC-EVO
Phoenix Contact
1407712 Phoenix Contact Rectangular Connector Sets
Image may differ
Unit Price (€ / pc.)
87.1199 € *
Available: 0 pcs.
Available in 10 days: 5 pcs.
Leadtime: 2 Weeks **
Total Price:
87.12 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
87.1199 €

Connector Set, 1407712, Phoenix Contact

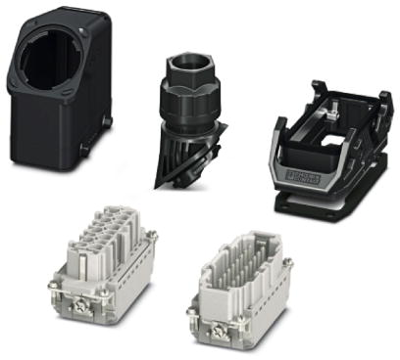

EVO connector set consisting of: 1407731, 1407732, 1407648, 1407643, 1407670

FEATURES

  • Halogen-free plastic
  • Lower risk of condensation
  • Completely corrosion-resistant
  • Both contact insert PE sheets are connected by means of a metal frame integrated in the sleeve housing

Technical Data

  • Connection type of the conductor: Push-in connection
  • min. Operating temperature: -40 °C
  • max. Operating temperature: 125 °C
  • Housing material: PA
  • Number of contacts: 16
  • Degree of protection: IP66
  • Rated current: 16 A
  • Rated voltage: 500 V
  • Rated impulse voltage: 6 kV
  • PE contact: true
  • Length: 114 mm
  • Width: 53 mm
  • Height: 124 mm
Technical specifications
Version connector kit
Shell size B16
Shell Material PA
Cable Outlet M25, straight
Contact connection push-in
PE contact Yes
Pin number 16 pole
Degree of protection (IP) IP66
Type of locking cross bow locking
Logistics
Country of origin CN
Customs tariff number 85366990
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
