1408793 | Phoenix Contact

Connector kit, size B16, 16 pole + PE , IP66, 1408793

Order No.: 62P2370
EAN: 4046356834100
MPN:
1408793
HC-EVO-B16PT-BWSC-HH-M25-PLRBK
Series: HC-EVO
Phoenix Contact
1408793 Phoenix Contact Rectangular Connector Sets
Image may differ
Unit Price (€ / pc.)
96.1401 € *
Available: 0 pcs.
Available in 10 days: 5 pcs.
Leadtime: 2 Weeks **
Total Price:
96.14 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
96.1401 €

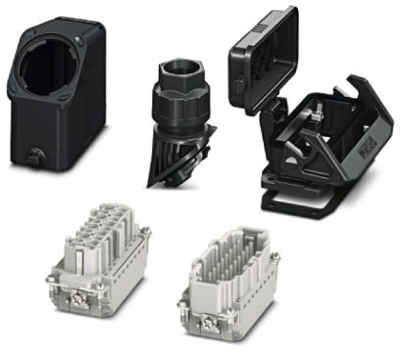

Connector Set, 1408793, Phoenix Contact

EVO connector set, B16 series, plastic housing, consisting of sleeve housing, panel mounting base, push-in contact inserts: 1407731, 1407732, 1407647, 1407642, 1407670

FEATURES

  • Halogen-free plastic
  • Lower risk of condensation
  • Completely corrosion-resistant
  • Both contact insert PE sheets are connected by means of a metal frame integrated in the sleeve housing

Technical Data

  • Connection type of the conductor: Push-in connection
  • min. Operating temperature: -40 °C
  • max. Operating temperature: 125 °C
  • Housing material: PA
  • Number of contacts: 16
  • Degree of protection: IP66
  • Rated current: 16 A
  • Rated voltage: 500 V
  • Rated impulse voltage: 6 kV
  • PE contact: true
  • Length: 114 mm
  • Width: 53 mm
  • Height: 124 mm
Technical specifications
Version connector kit
Shell size B16
Shell Material PA
Cable Outlet M25, straight
Contact connection push-in
PE contact Yes
Pin number 16 pole
Degree of protection (IP) IP66
Type of locking longitudinal bow locking
Logistics
Country of origin PL
Customs tariff number 85366990
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
