1409655 | Phoenix Contact

Connector kit, size D7, 3 pole + PE , IP65, 1409655

Order No.: 62P2520
EAN: 4046356752404
MPN:
1409655
HC-KIT-A03-R01
Series: HC-KIT
Phoenix Contact
1409655 Phoenix Contact Rectangular Connector Sets
Image may differ
Unit Price (€ / pc.)
80.9081 € *
Available: 0 pcs.
Available in 10 days: 9 pcs.
Leadtime: 2 Weeks **
Total Price:
80.91 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
80.9081 €

Connector Set, 1409655, Phoenix Contact

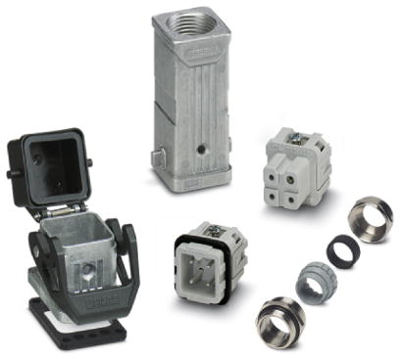

Connector set, consisting of: D7 sleeve housing and panel mounting base, 3-pos. plug and socket insert, M20 cable gland.

Technical Data

  • Connection type of the conductor: Screw connection
  • min. Operating temperature: -40 °C
  • max. Operating temperature: 125 °C
  • Housing material: Aluminium
  • Degree of protection: IP65
  • Rated current: 24 A
  • Rated voltage: 230 V
  • Rated impulse voltage: 4 kV
  • PE contact: true
  • Length: 34.2 mm
  • Width: 38 mm
  • Height: 123 mm
Technical specifications
Version connector kit
Shell size D7
Shell Material die-cast aluminum
Cable Outlet M20, straight
Contact connection screw connection
PE contact Yes
Pin number 3 pole
Degree of protection (IP) IP65
Type of locking longitudinal bow locking
Logistics
Country of origin CN
Customs tariff number 85366990
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free No
Substance description Lead
