1411359 | Phoenix Contact

Connector kit, size D25, 16 pole + PE , IP66, 1411359

Order No.: 62P2298
EAN: 4046356929295
MPN:
1411359
HC-EVO-A16UT-BWSC-HH-M25-PLRBK
Series: HC-EVO
Phoenix Contact

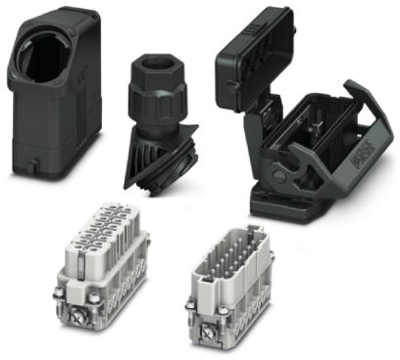

1411359 Phoenix Contact Rectangular Connector Sets
Image may differ
Unit Price (€ / pc.)
106.8025 € *
Available: 0 pcs.
Available in 10 days: 17 pcs.
Leadtime: 2 Weeks **
Total Price:
106.80 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
106.8025 €

Connector Set, 1411359, Phoenix Contact

Connector set, degree of protection: IP66, number of positions: 16, material: PA, connection method: Screw connection, connection cross section: AWG 20- 14

Technical Data

  • Connection type of the conductor: Screw connection
  • min. Operating temperature: -40 °C
  • max. Operating temperature: 100 °C
  • Housing material: PA
  • Number of contacts: 16
  • Degree of protection: IP66
  • Rated current: 20 A
  • Rated voltage: 250 V
  • Rated impulse voltage: 4 kV
  • Length: 97 mm
  • Width: 39 mm
  • Height: 114.5 mm
Technical specifications
Version connector kit
Shell size D25
Shell Material PA
Contact connection screw connection
PE contact Yes
Pin number 16 pole
Degree of protection (IP) IP66
Type of locking longitudinal bow locking
Logistics
Country of origin CN
Customs tariff number 85366990
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free No
Substance description Lead
