1411487 | Phoenix Contact

Connector kit, size B6, 6 pole + PE , IP66, 1411487

Order No.: 62P2308
EAN: 4046356932875
MPN:
1411487
HC-EVO-B06PT-BWSC-HL-M20ELC-AL
Series: HC-EVO
Phoenix Contact
1411487 Phoenix Contact Rectangular Connector Sets
Image may differ
Unit Price (€ / pc.)
93.9505 € *
Available: 0 pcs.
Leadtime: 5 Weeks **
Total Price:
93.95 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
93.9505 €

Connector Set, 1411487, Phoenix Contact

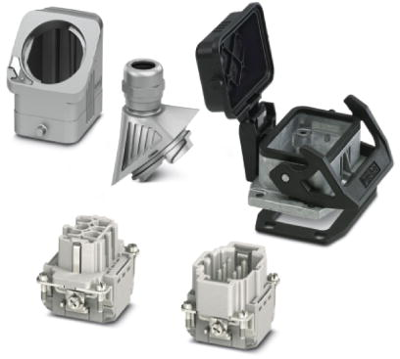

EVO connector set, B6 series, metal housing, consisting of: sleeve housing 1411448, panel mounting base 1411319, EVO screw connection 1411439, pin contact insert 1407728, socket contact insert 1407727

Technical Data

  • Connection type of the conductor: Push-in connection
  • min. Operating temperature: -40 °C
  • max. Operating temperature: 125 °C
  • Housing material: Aluminium
  • Number of contacts: 6
  • Degree of protection: IP66
  • Rated current: 16 A
  • Rated voltage: 500 V
  • Rated impulse voltage: 6 kV
  • PE contact: true
  • Length: 80.5 mm
  • Width: 53 mm
  • Height: 94.5 mm
Technical specifications
Version connector kit
Shell size B6
Shell Material die-cast aluminum
Cable Outlet M20, straight
Contact connection push-in
PE contact Yes
Pin number 6 pole
Degree of protection (IP) IP66
Type of locking longitudinal bow locking
Logistics
Country of origin DE
Customs tariff number 85366990
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free No
Substance description Lead
