1641604 | Phoenix Contact

Connector kit, size D7, 3 pole + PE , IP65, 1641604

Order No.: 62P1144
EAN: 4017918890001
MPN:
1641604
HC-A3-STQ1,5-KML-G-PA
Series: HC-A
Phoenix Contact
1641604 Phoenix Contact Rectangular Connector Sets
Image may differ
Unit Price (€ / pc.)
15.1249 € *
Available: 1 pcs.
Leadtime: 2 Weeks **
Total Price:
15.12 € *
Price list
Quantity
Price per unit*
1 pcs.
15.1249 €
10 pcs.
13.3161 €
50 pcs.
12.3998 €
150 pcs.
11.8643 €
500 pcs.
11.2455 €
*incl. VAT plus shipping costs
**Subject to prior sale

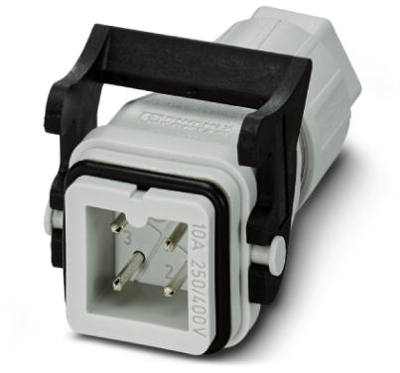

Connector Set, 1641604, Phoenix Contact

HEAVYCON QUICKON coupling housing A3, for single locking latch, 3-pos., with PE connection, plug , QUICKON connection, straight cable outlet.

Technical Data

  • min. Operating temperature: -25 °C
  • max. Operating temperature: 80 °C
  • Housing material: PA
  • Degree of protection: IP65
  • Length: 26.5 mm
  • Width: 34 mm
  • Height: 62.8 mm
Technical specifications
Version connector kit
Shell size D7
Shell Material PA
PE contact Yes
Pin number 3 pole
Degree of protection (IP) IP65
Type of locking longitudinal bow locking
Logistics
Country of origin PL
Customs tariff number 85366990
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
